Title: 5 pin slide switches 1p2t dip Spdt slide switch horizontal 8.6×4.4
Part No: SK-12D02
Specification:
Rating: 30mA ,50V DC
Contact Resistance: ≤50MΩ
Withstand Voltage: DC 500V 1Minute
Operating Life: 10,000 Cycles
Packaging: Reel/Bag
Features & Advantage:
◆ Suitable for high-density mounting.
◆ Easy and Quick usage for better user experience.
◆ Smaller part size saves space.
◆ Contacts are completely sealed, enhancing reliability
◆ All parts will be inspected before the shipment.
◆ Free sample available for quality test.
◆ Can be customized for unique material or performance requirement.
Application:
◆ For operating various mobile devices, electronic accessories etc.
◆ For operating various devices that require high density mounting such as mobile phones, communication devices compact electronic devices.
Title: 6pin DIP right angle slide switch 2P2T 14×6.5 switch slides
Part No: SK-22H09
Specification:
Rating: 0.5A ,50V DC
Contact Resistance: ≤50MΩ
Withstand Voltage: DC 500V 1Minute
Operating Life: 10,000 Cycles
Packaging: Reel/Bag

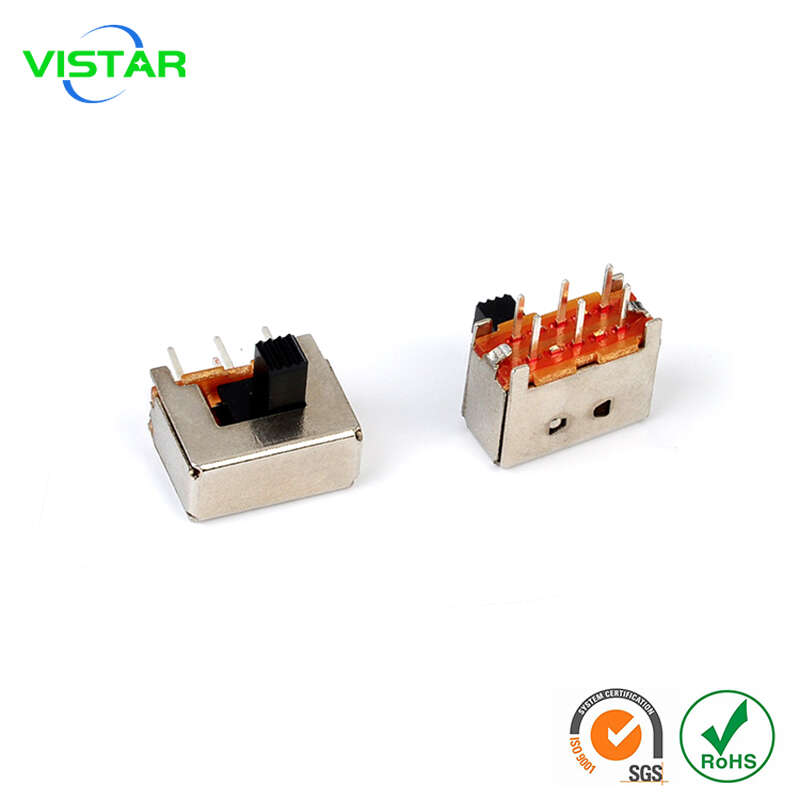

Title: 6 pin DIP Slide switch 90° 2P2T slide switches horizontal 14×6.7
Part No: SK-22H02
Specification:
Rating: 0.5A ,50V DC
Contact Resistance: ≤50MΩ
Withstand Voltage: DC 500V 1Minute
Operating Life: 10,000 Cycles
Packaging: Reel/Bag
Title: Three position slide switch 4 pin SMD slide switch 1p3t right angle
Part No: SK-13D07
Specification:
Rating: 30mA ,50V DC
Contact Resistance: ≤50MΩ
Withstand Voltage: DC 500V 1Minute
Operating Life: 10,000 Cycles
Packaging: Reel/Bag
Title: 10 pin slide switch 4p2t switch slides DIP right angle
Part No: SK-42D02
Specification:
Rating: 0.5A ,50V DC
Contact Resistance: ≤50MΩ
Withstand Voltage: DC 500V 1Minute
Operating Life: 10,000 Cycles
Packaging: Reel/Bag
