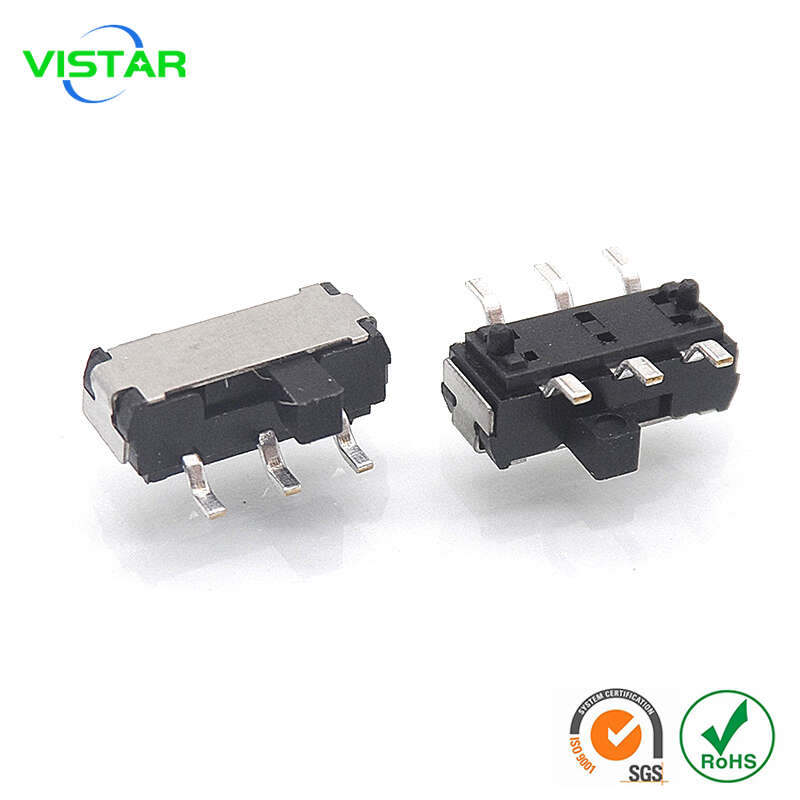

Title: 6 pin SMT Micro slide switch 2P2T 2 position SMD mini slide switches DPDT
Part No: MSK-22D14
Specification:
Rating: 30mA ,6V DC
Travel: 0.2±0.1mm
Operating force: 250 gf
Operating Life: 10,000 Cycles
Packaging: Reel/Bag
6 pin Micro slide switch 2P2T 2 position SMD mini slide switch DPDT
Tags: mini slide switch DPDT, mini slide switch 2p2t, SMD mini slide switch, mini sliding switch, small slide switch
Features & Advantage:
◆ Suitable for high-density mounting.
◆ Easy and Quick usage for better user experience.
◆ Smaller part size saves space.
◆ Contacts are completely sealed, enhancing reliability
◆ All parts will be inspected before the shipment.
◆ Free sample available for quality test.
◆ Can be customized for unique material or performance requirement.
Application:
◆ For operating various mobile devices, electronic accessories etc.
◆ For operating various devices that require high density mounting such as mobile phones, communication devices compact electronic devices.
Title: 3 pin mini slide switch 1P2T DIP micro sliding switch SPST 90°
Part No: MSK-12D10
Specification:
Rating: DC 50V 0.5A
Contact Resistance: 30mΩ Max
Insulation Resistance: 500mΩ Min at 500V DC
Withstand Voltage: AC 500V/1 min
Packaging: Reel/Bag

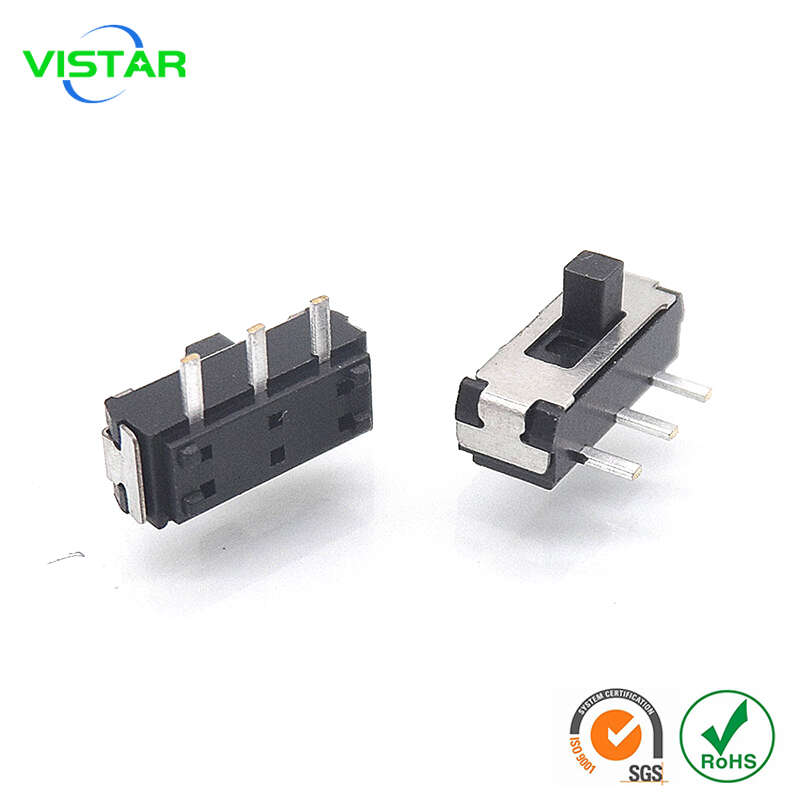

Title: 3 pin Mini on off slide switch Spdt dip right angle 1p2t miniature slide switches 90°
Part No: MSK-12D13
Specification:
Rating: 30mA ,4V DC
Travel: 0.2±0.1mm
Operating force: 150 gf
Operating Life: 10,000 Cycles
Packaging: Reel/Bag

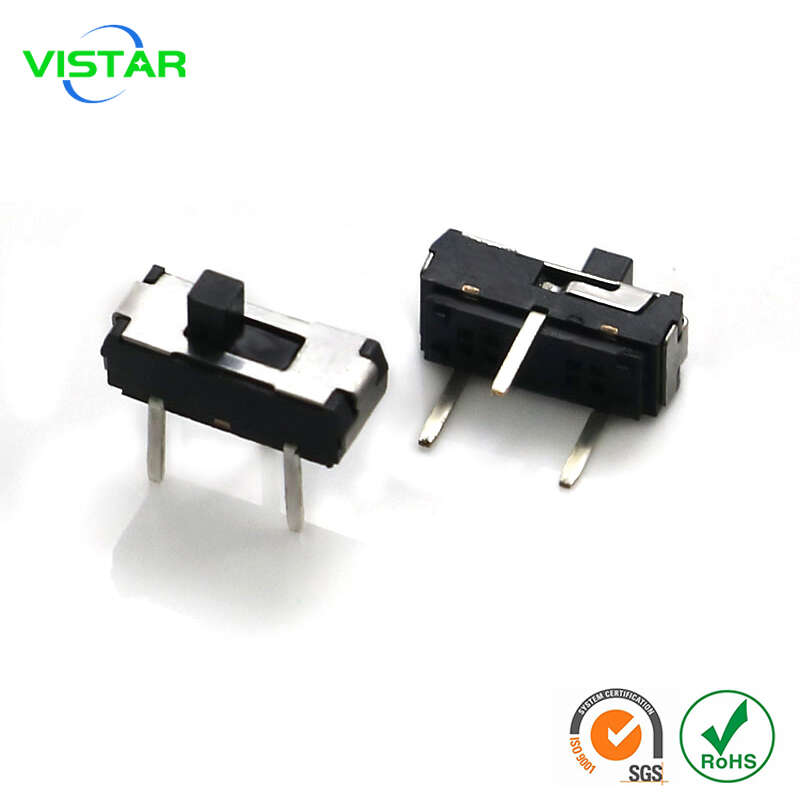

Title: Mini slide switch SPDT 3 pin micro slide switch 1p2t dip vertical
Part No: MSS-12D16
Specification:
Rating: 30mA ,6V DC
Travel: 0.2±0.1mm
Operating force: 200 gf
Operating Life: 10,000 Cycles
Packaging: Reel/Bag

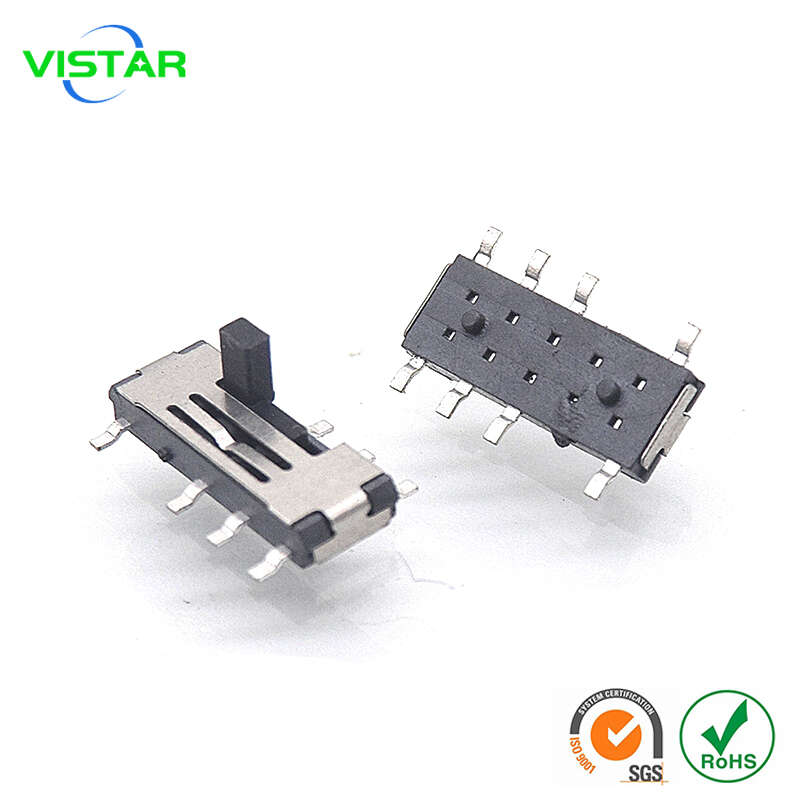

Title: 8 pin mini slide switch 3 position SMD vertical 2P3T mini slide switches
Part No: MSS-23C02
Specification:
Rating: 30mA ,6V DC
Travel: 0.2±0.1mm
Operating force: 250 gf
Operating Life: 10,000 Cycles
Packaging: Reel/Bag
