Title: 3 pins LED rocker switch kcd3 Snap-In on-off lighted rocker switch
Part No: KCD3-601N
Specification:
Rating: 15A 250VAC / 20A 120VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag
3 pins LED rocker switch kcd3 Snap-In on-off lighted rocker switch
Tags: rocker switches, kcd3 rocker switch, led rocker switch
Features & Advantage:
◆ Suitable for high-density mounting.
◆ Easy and Quick usage for better user experience.
◆ Smaller part size saves space.
◆ Contacts are completely sealed, enhancing reliability
◆ All parts will be inspected before the shipment.
◆ Free sample available for quality test.
◆ Can be customized for unique material or performance requirement.
Rocker Switch KCD1, KCD1 Rocker Switch, kcd2 rocker switch, kcd3 rocker switch, kcd4 rocker switch, momentary rocker switch, Round Rocker Switch, waterproof rocker switch rocker switch manufacturing, Rocker Switch manufacturer China

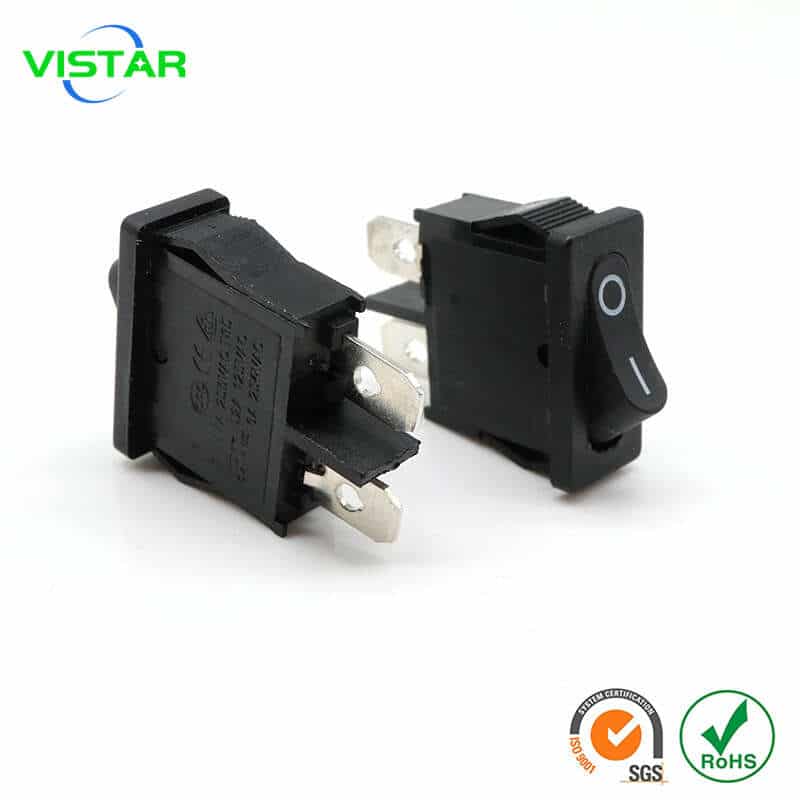

Title: Black tin rocker switch kcd1 SPST 2p solder type
Part No: KCD1-110
Specification:
Rating: 3A 250VAC, 6A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag
Title: 4 pin rocker light switch kcd4 on off rocker switch wiring LED illuminated boat switches
Part No: KCD4-201N
Specification:
Rating: 15A 250VAC / 20A 120VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag
Title: 3 way on off on rocker switch black button round kcd1 switch
Part No: KCD1-5-103
Specification:
Rating: 6A 250VAC ; 10A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag
Title: Waterproof rocker switch 4 pin KCD4 on/off/on boat switch
Part No: KCD4-WP-4P
Specification:
Rating: 15A 250VAC / 20A 120VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag
