3.5mm phone jack dip

3.5mm phone jack

Specifications

Title: 3.5mm phone jack DIP 3pin 90° 3.5 mm audio jack connector 3p right angle

Part No: PJ-308

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

Features and Advantage

3.5mm phone jack DIP 3pin 90° 3.5 mm audio jack connector 3p right angle

Tags: 3.5 phone jack, 3.5mm audio jack, 3pin Phone jack 3.5mm, 3.5mm phone jack

Features & Advantage:

◆ Suitable for high-density mounting.

◆ Easy and Quick usage for better user experience.

◆ Smaller part size saves space.

◆ Contacts are completely sealed, enhancing reliability

◆ All parts will be inspected before the shipment.

◆ Free sample available for quality test.

◆ Can be customized for unique material or performance requirement.

Application:

◆ For operating various mobile devices, electronic accessories etc.

◆ For operating various devices that require high density mounting such as mobile phones, communication devices compact electronic devices.

Related Items

3.5 mm phone jack DIP

3.5 mm phone jack 4 pin DIP

Title: 3.5 mm phone jack DIP 4pin right angle jack phone panle mount 1/8 inch audio jack

Part No: PJ-327

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

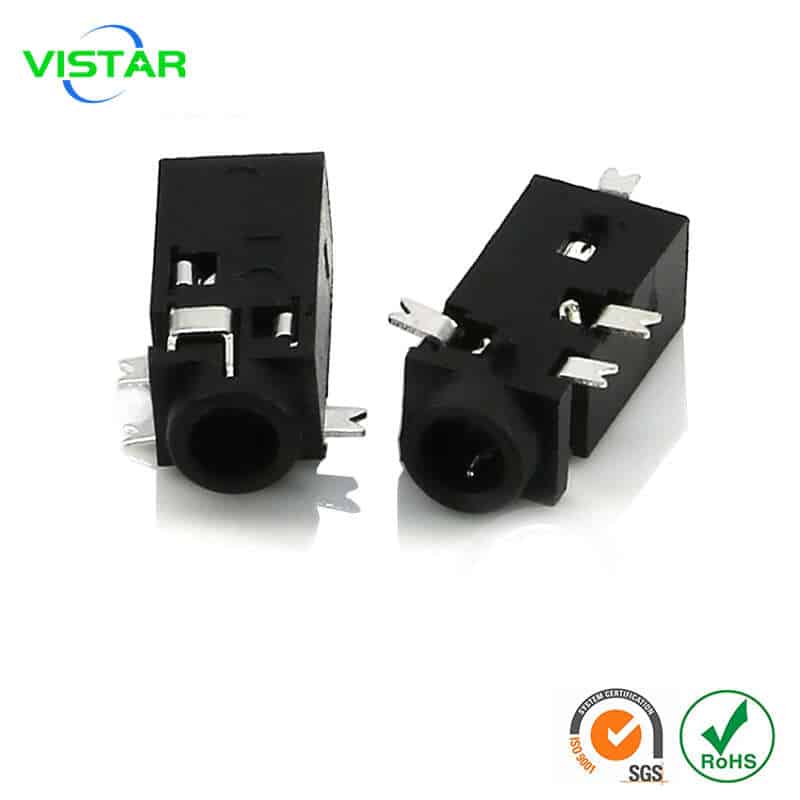

4 pin phone jack SMD right angle
