2.5mm phone jack wiring

2.5mm phone jack wiring

Specifications

Title: 2.5mm phone jack wiring 3 pin 2.5 audio jack with nut

Part No: PJ-213M

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

Features and Advantage

2.5mm phone jack wiring solder type 3 pin audio jack with nut

Tags: 2.5 mm phone jack, 2.5 mm headphone jack, 2.5 earphone jack, phone jack

Features & Advantage:

◆ Suitable for high-density mounting.

◆ Easy and Quick usage for better user experience.

◆ Smaller part size saves space.

◆ Contacts are completely sealed, enhancing reliability

◆ All parts will be inspected before the shipment.

◆ Free sample available for quality test.

◆ Can be customized for unique material or performance requirement.

Application:

◆ For operating various mobile devices, electronic accessories etc.

◆ For operating various devices that require high density mounting such as mobile phones, communication devices compact electronic devices.

Related Items

3.5 mm audio jack

3.5 mm audio jack dip

Title: 3.5 mm audio jack DIP 5 pin right angle phono jack 3.5mm

Part No: PJ-313

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

6.35 mm phone jack connector

6.35 mm phone jack DIP 7 pin

Title: 6.35 mm phone jack right angle DIP 7pin PCB panel mount audio jack connector

Part No: PJ-6102S

Specification:

Rating: DC 30V 1 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 5N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

3.5 mm audio jack female stereo smd jack 3.5mm耳机音频插座PJ313D黑色3节6脚贴片耳机插座3.5母座

3.5 mm audio jack female SMT 6pin

Title: Best audio jack 3.5 stereo 6 pin phone jack 3.5 mm audio jack female SMT right angle

Part No: PJ-313D

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

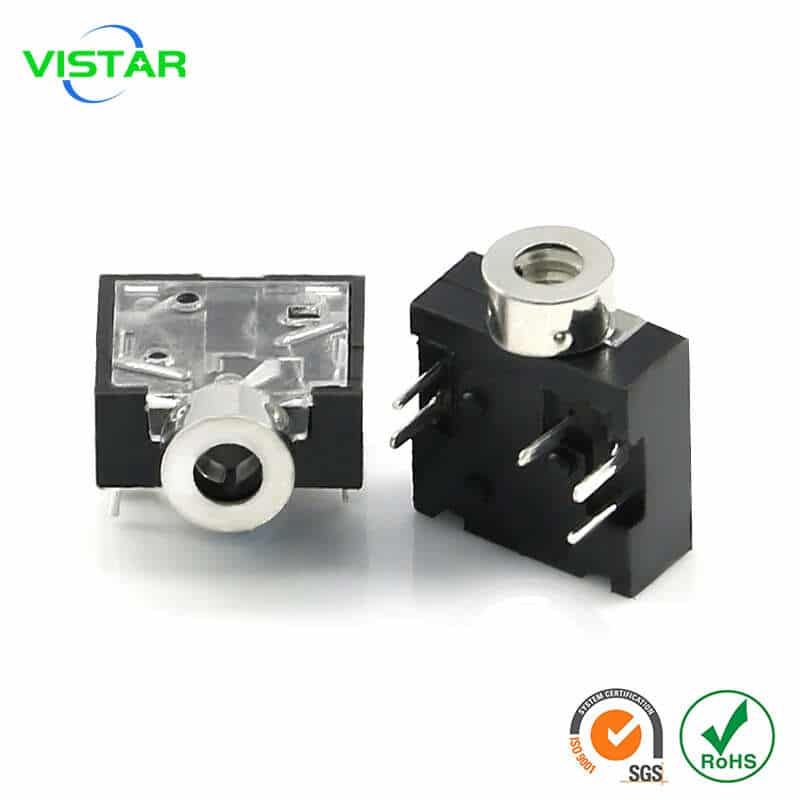

2.5 mm EARPHONE JACK
