USB 3.0 Connector

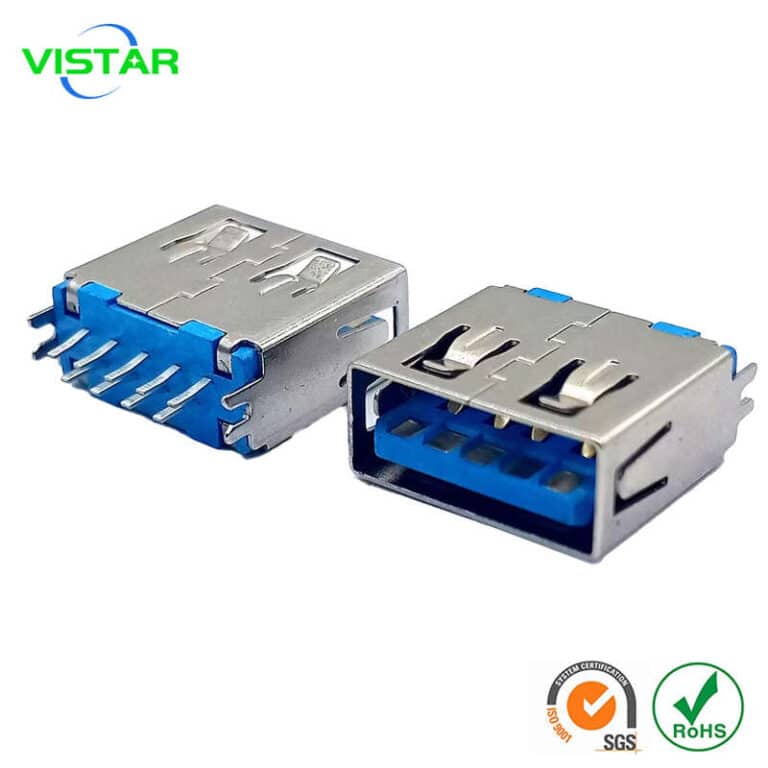

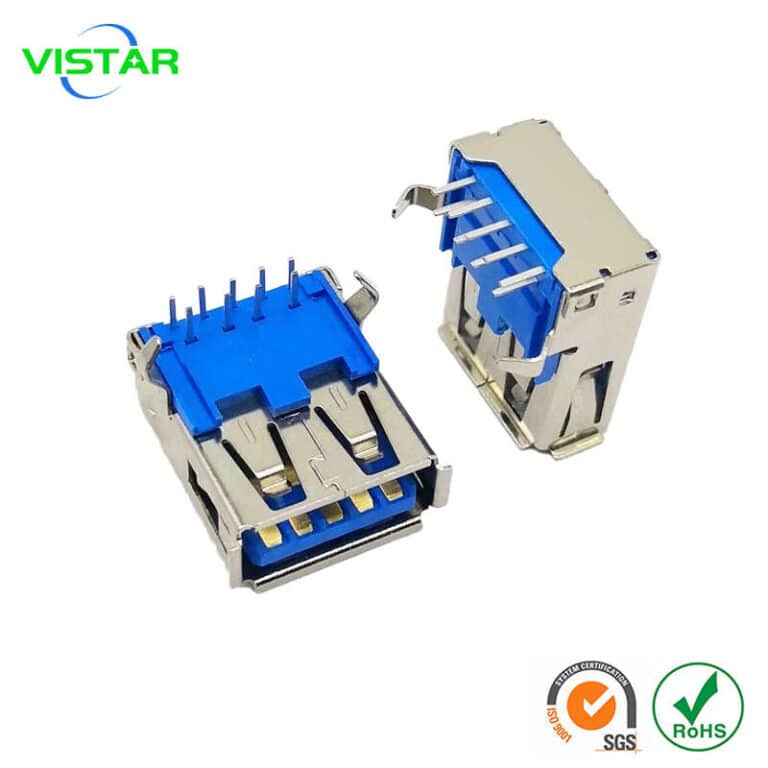

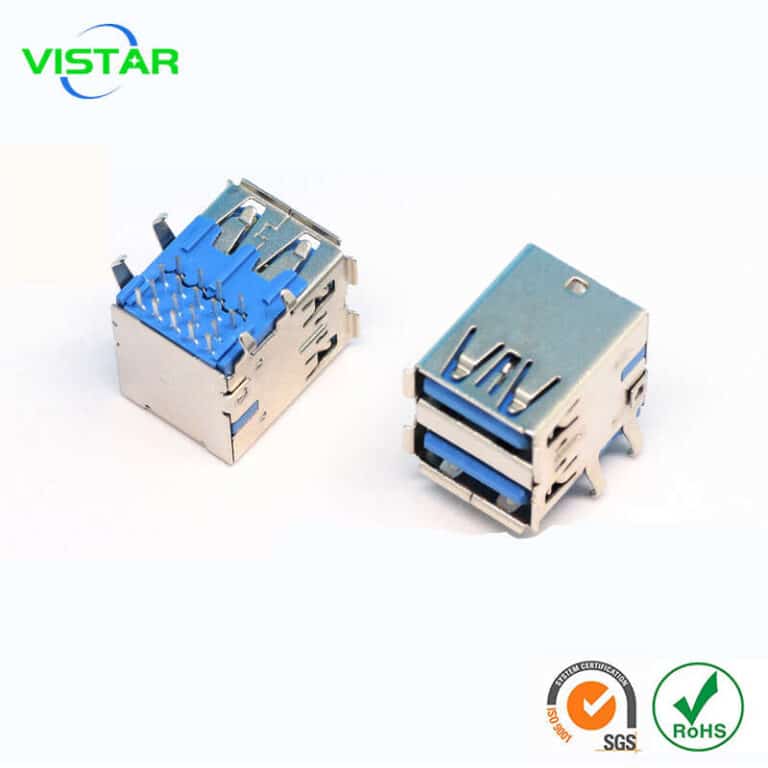

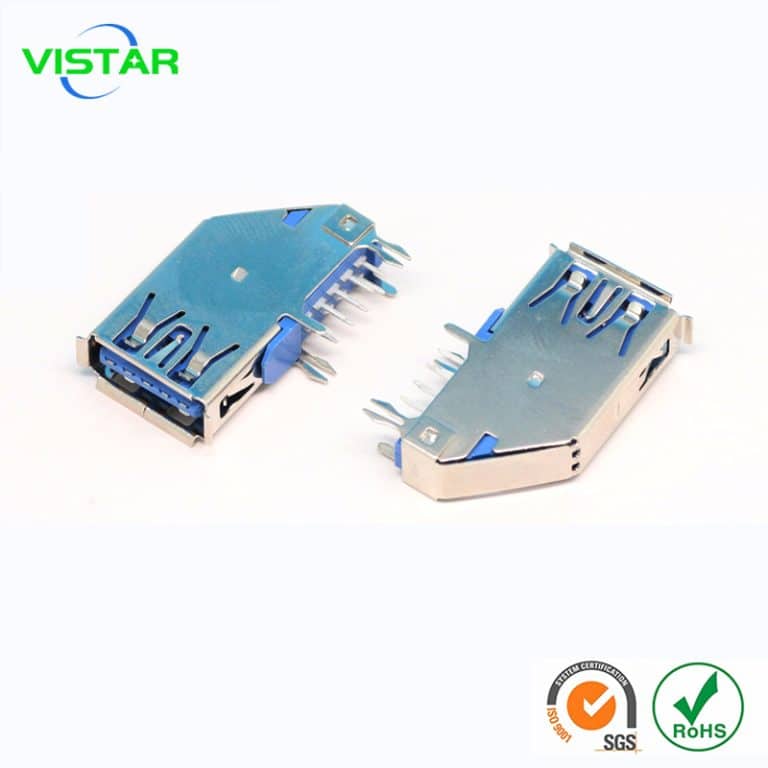

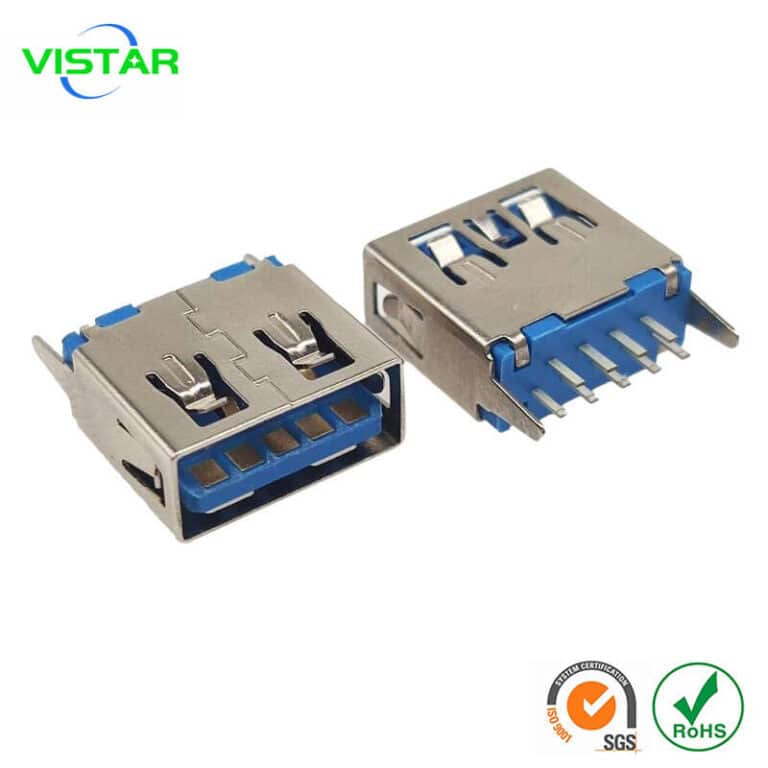

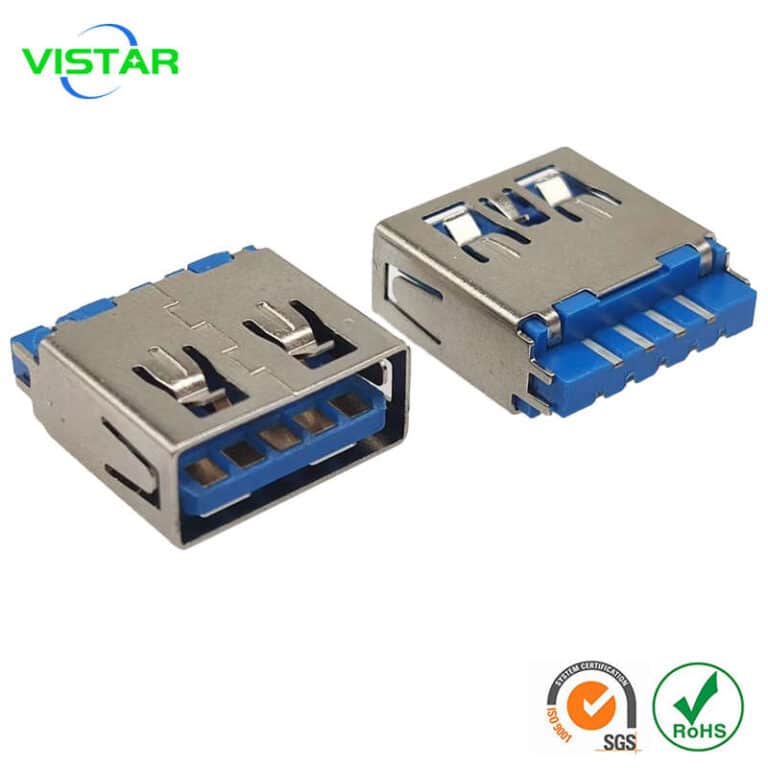

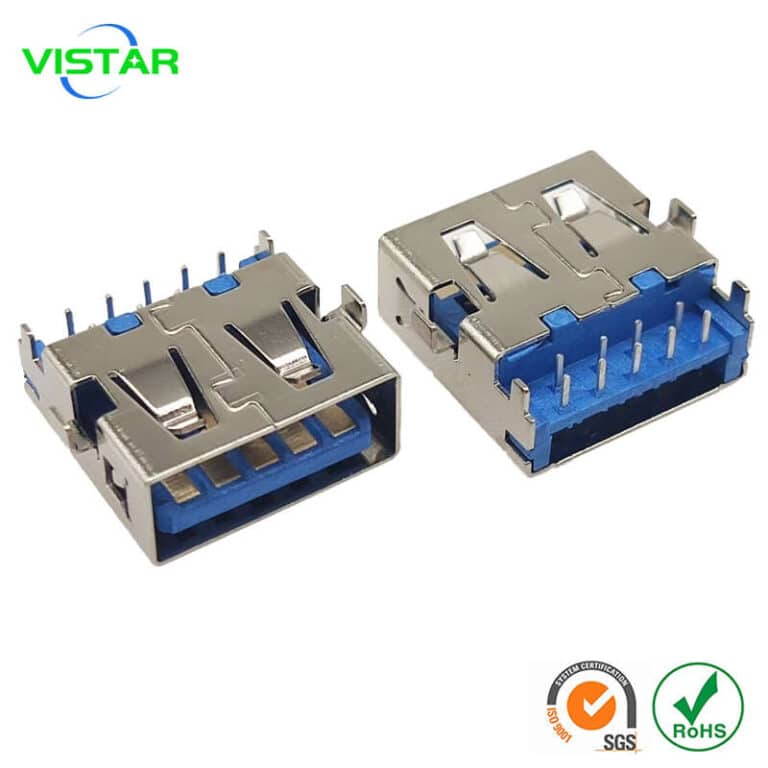

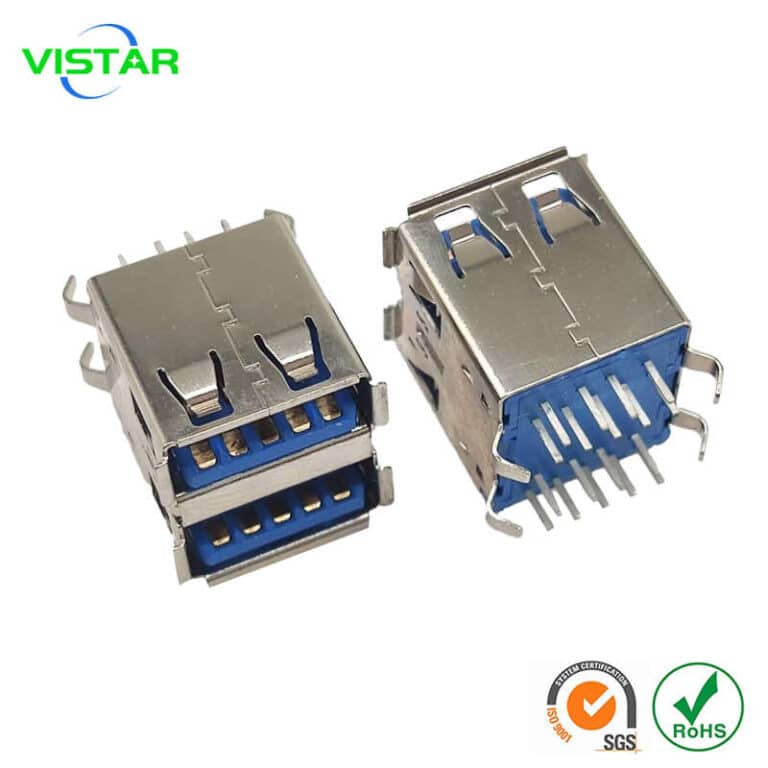

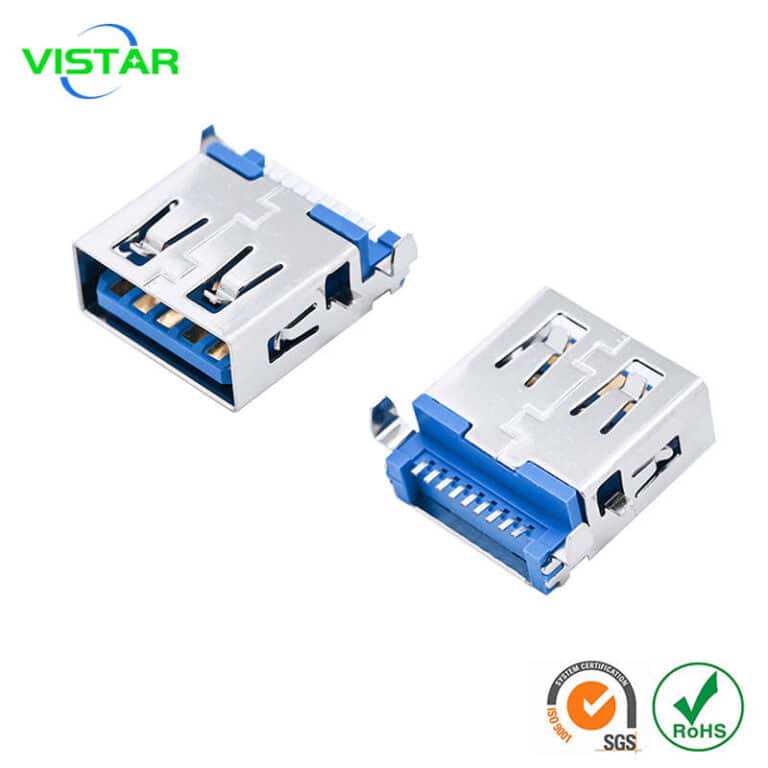

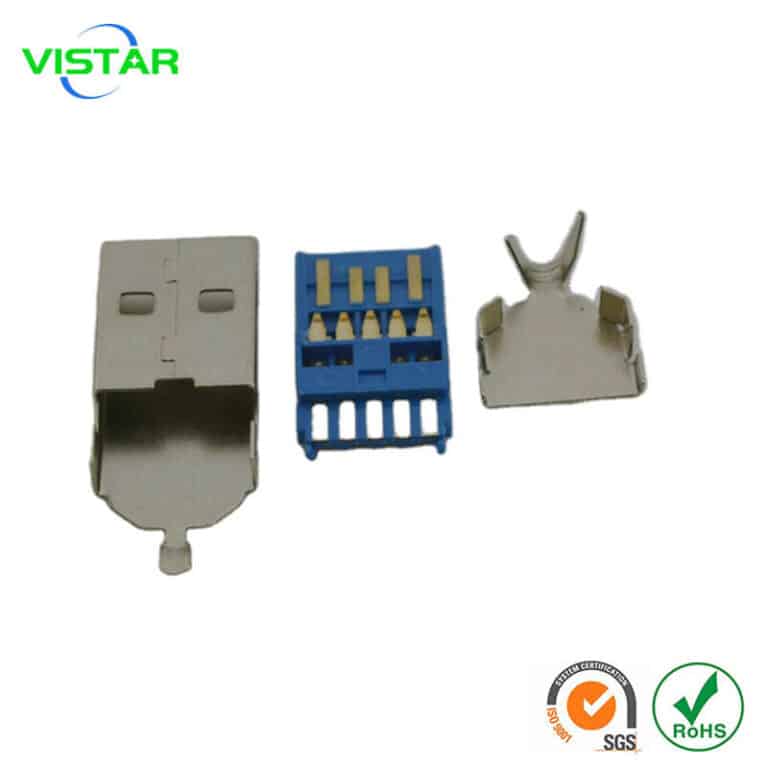

9 pin smd dip usb 3.0 connector male female.

A USB 3.0 connector refers to the standardized connector used for USB (Universal Serial Bus) version 3.0.

USB 3.0 is an upgraded version of the USB standard that offers faster data transfer speeds, improved power delivery, and enhanced functionality compared to USB 2.0. The USB 3.0 connector is backward compatible, meaning it can be used with USB 2.0 devices and vice versa, but the full benefits of USB 3.0 are only realized when using a USB 3.0 host and device.

The USB 3.0 connector is identifiable by its blue-colored plastic insert inside the connector. The physical shape of the USB 3.0 connector is similar to the USB 2.0 connector, with a rectangular shape having a flat bottom and rounded edges. However, USB 3.0 connectors have additional pins and features that allow for increased data transfer speeds and improved power delivery.

The USB 3.0 connector has nine pins, which include five additional pins compared to the USB 2.0 connector. These additional pins are used to facilitate SuperSpeed data transfer and enhance power delivery capabilities. The USB 3.0 connector is also designed to be inserted into a USB port with a specific orientation, ensuring proper alignment for data and power connections.

USB 3.0 connectors are commonly used in a wide range of devices, including computers, external hard drives, cameras, and other devices that require fast data transfer speeds or increased power delivery. USB 3.0 offers data transfer rates up to 5 Gbps, which are significantly faster than the maximum 480 Mbps offered by USB 2.0.
