Mini USB Connector

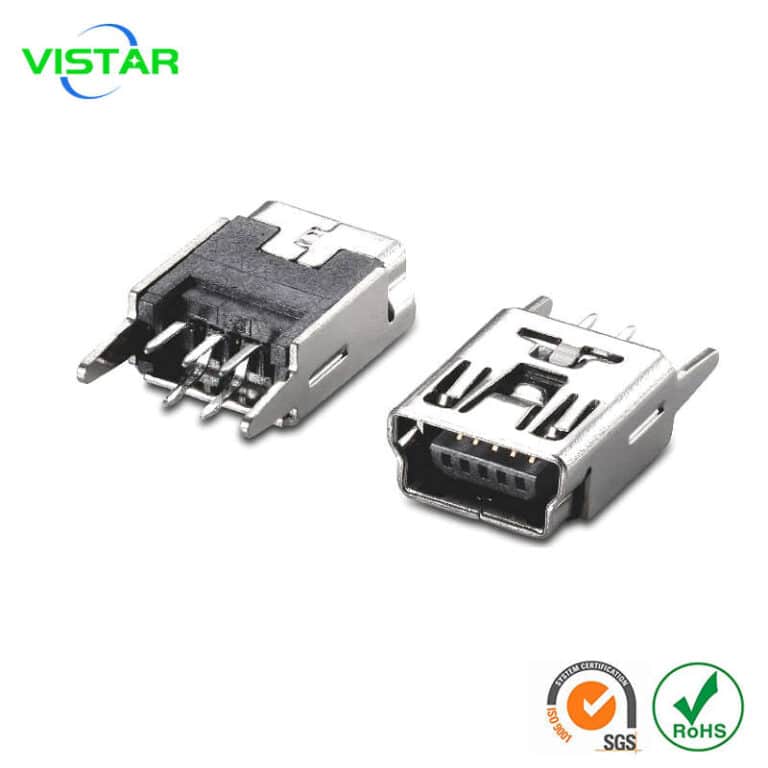

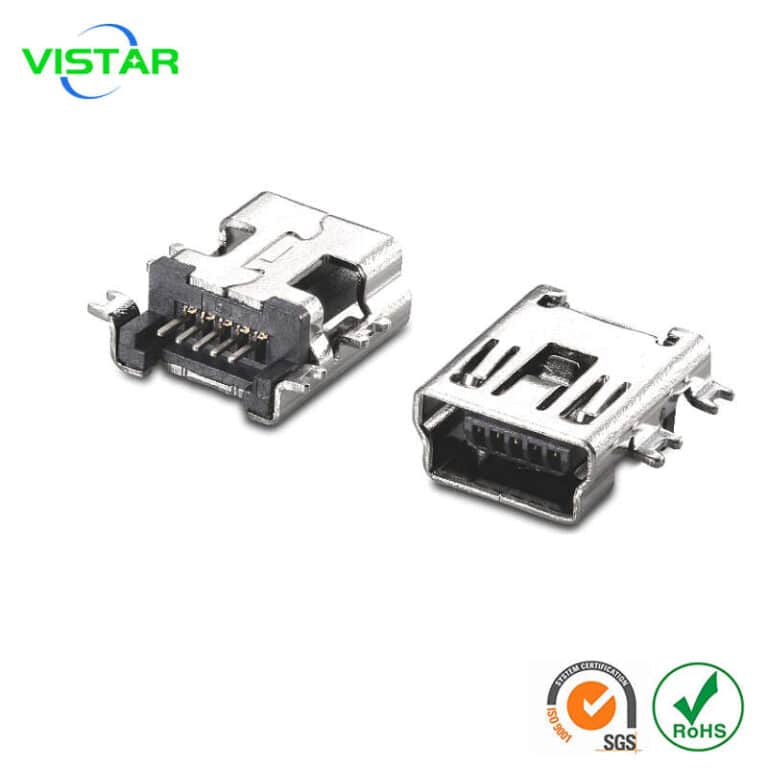

5pin mini usb connector pcb mount

The mini USB connector is a smaller version of the standard USB connector that was introduced as a predecessor to the micro USB connector. It was commonly used on various devices before the micro USB became the standard.

The mini USB connector features a trapezoidal shape with a single port that can be plugged in either way. It is typically found on devices such as digital cameras, MP3 players, older smartphones, and other portable electronics.

Like the micro USB connector, the mini USB connector allows for charging, syncing, and connecting devices to a computer or power source. It provides a reliable and universal connection, allowing for the transfer of data and power between devices.

However, the mini USB connector has some disadvantages compared to its successor, the micro USB connector. One major drawback is its larger size, which can make it less convenient to use on smaller devices. The larger size also makes it more susceptible to wear and tear, as the connector can be easily damaged if not handled carefully.

Another drawback of the mini USB connector is its orientation. Unlike the micro USB connector, which can be plugged in either way, the mini USB connector has a specific orientation that needs to be aligned correctly for it to be connected. This can be frustrating at times, especially when trying to plug in a cable in a dark environment or without paying close attention.

Overall, while the mini USB connector was widely used in the past, it has been largely replaced by the micro USB connector and now by the newer USB Type-C connector. However, there are still some devices that use the mini USB connector, and it may be necessary to have a mini USB cable on hand for older devices or equipment.
