KCD1 KCD2 KCD3 KCD4 rocker switch
A rocker switch is a type of electrical switch that has a rocker-shaped actuator that can be toggled between two or more positions. It is commonly used in various applications, including household appliances, automotive systems, industrial machinery, and electronic devices.

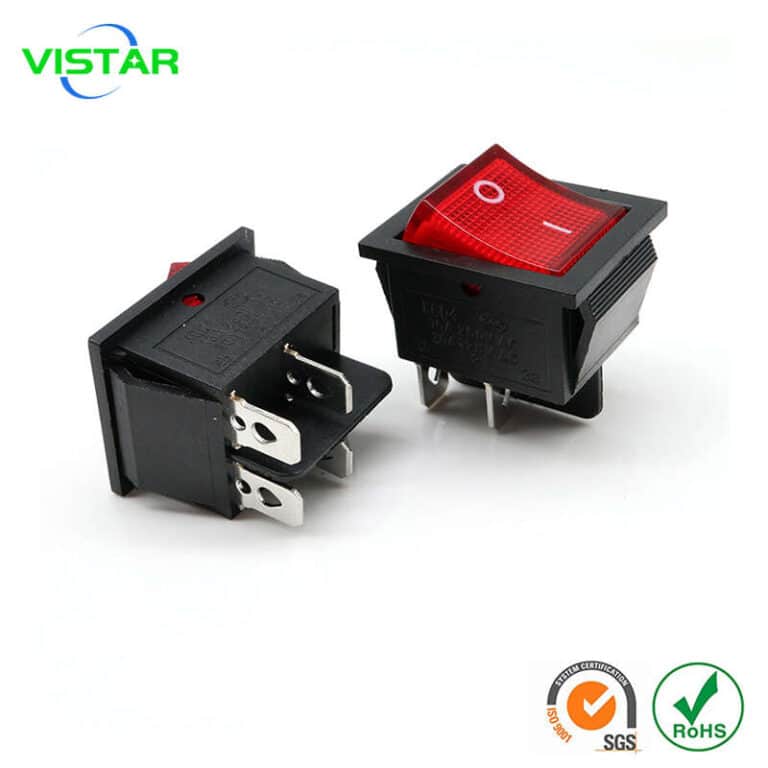

Title: 4 pin rocker light switch kcd4 on off rocker switch wiring LED illuminated boat switches
Part No: KCD4-201N
Specification:
Rating: 15A 250VAC / 20A 120VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

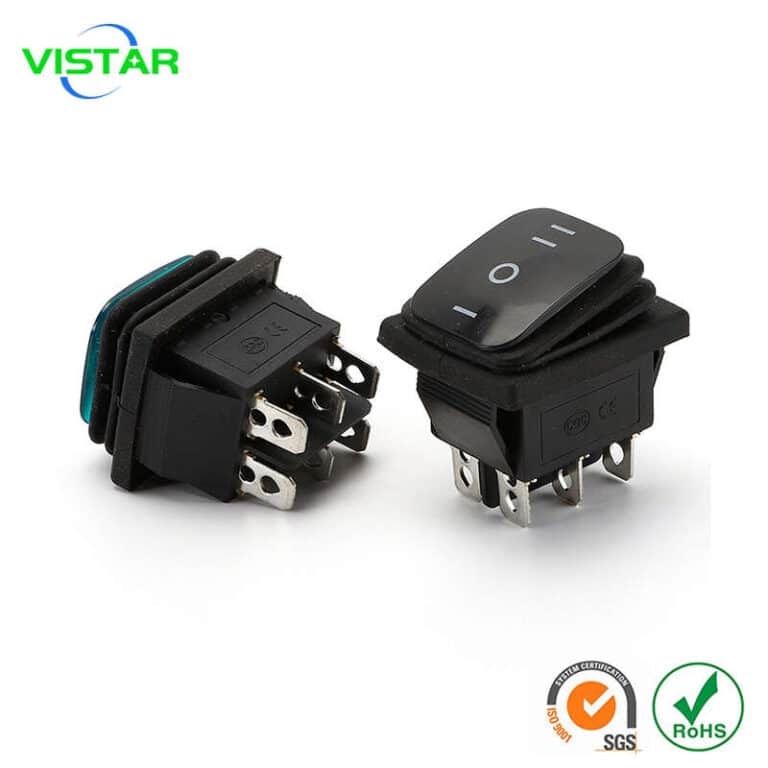

Title: 6 pin kcd4 rocker switch waterproof dpdt illuminated rocker switch
Part No: KCD4-WP-6P
Specification:
Rating: 15A 250VAC / 20A 120VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

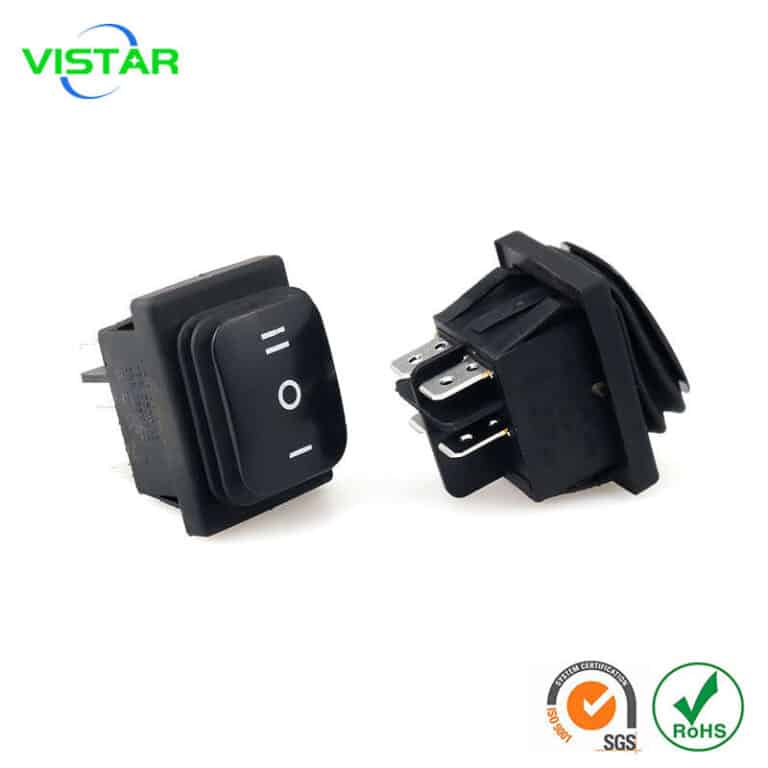

Title: Waterproof rocker switch 4 pin KCD4 on/off/on boat switch
Part No: KCD4-WP-4P
Specification:
Rating: 15A 250VAC / 20A 120VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

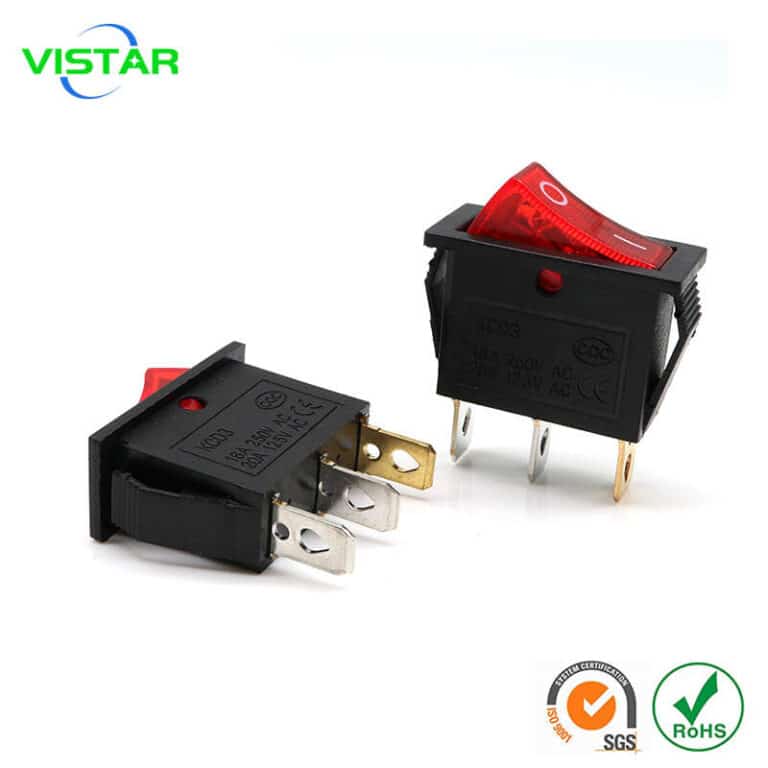

Title: 3 pins LED rocker switch kcd3 Snap-In on-off lighted rocker switch
Part No: KCD3-601N
Specification:
Rating: 15A 250VAC / 20A 120VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

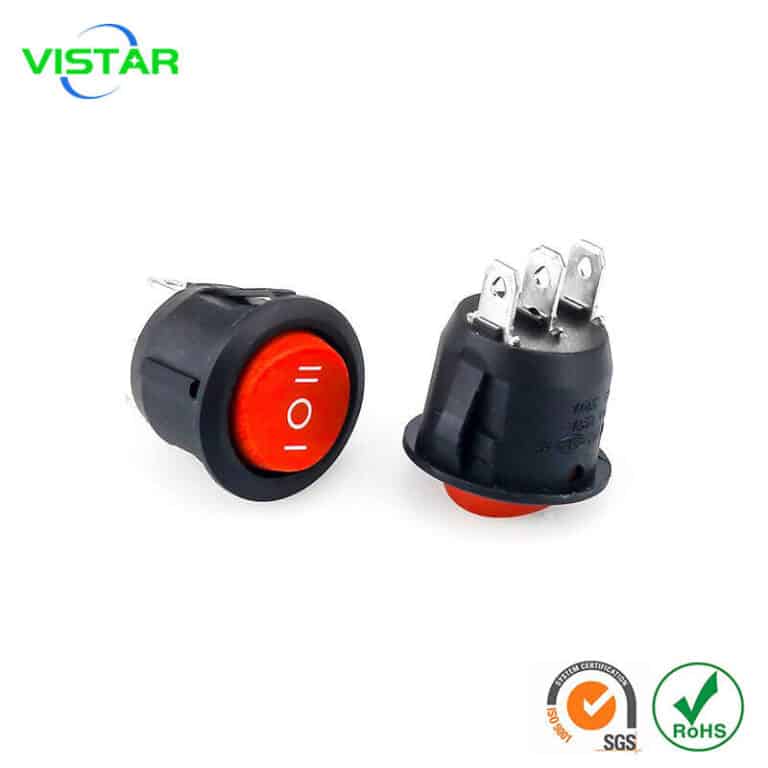

Title: 3 pin round rocker switch red button on-off-on kcd1 rocker switch
Part No: KCD1-5-103
Specification:
Rating: 6A 250VAC ; 10A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

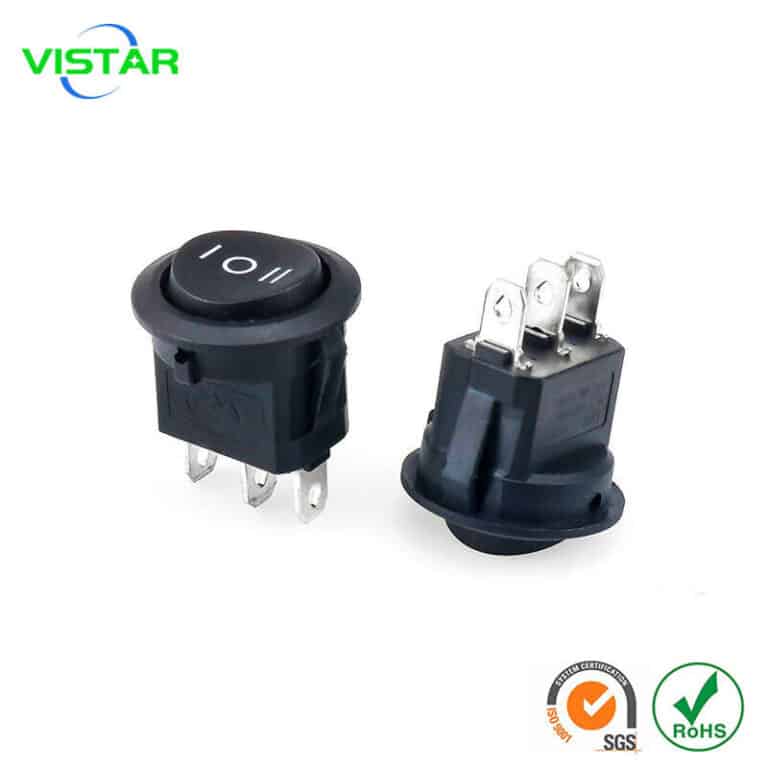

Title: 3 way on off on rocker switch black button round kcd1 switch
Part No: KCD1-5-103
Specification:
Rating: 6A 250VAC ; 10A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

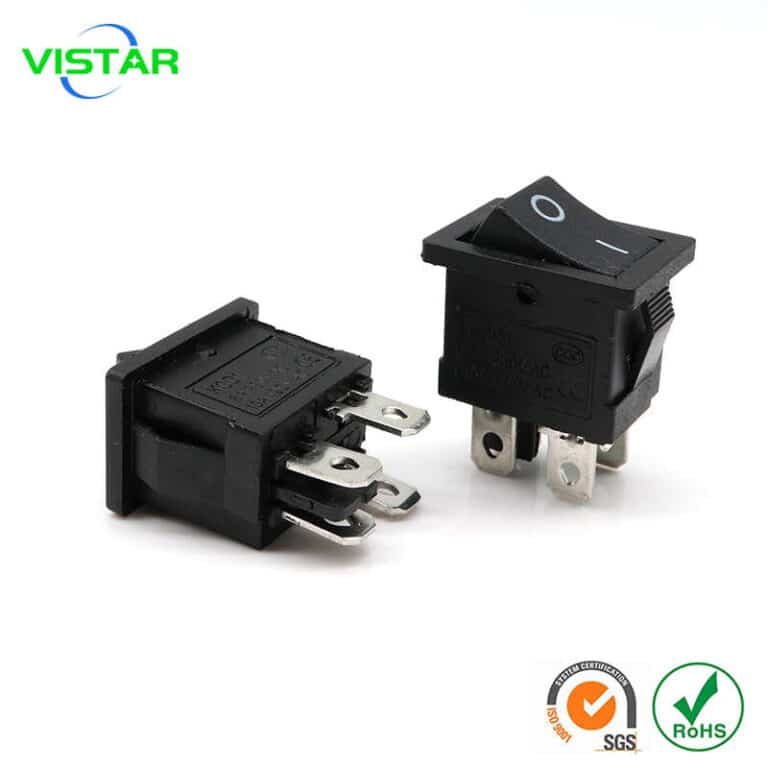

Title: 4 pin rocker switch DPST 21×15 mm 6A 250V ON/OFF 15*21mm
Part No: KCD1-104
Specification:
Rating: 6A 250VAC ; 10A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

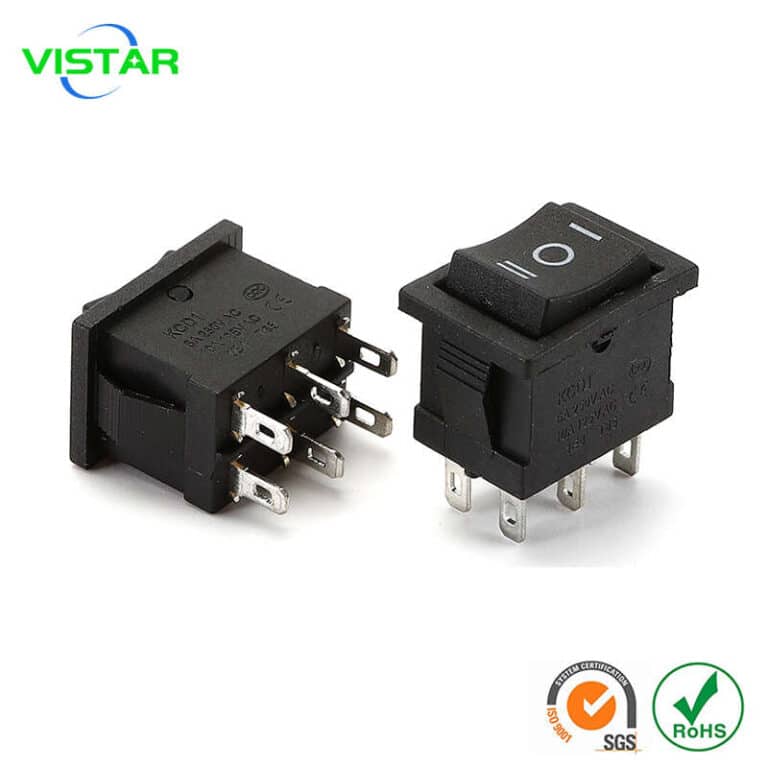

Title: 6 pins KCD1 rocker switch 21*15 mm on off on boat rocker switch
Part No: KCD1-106-6p
Specification:
Rating: 6A 250VAC ; 10A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

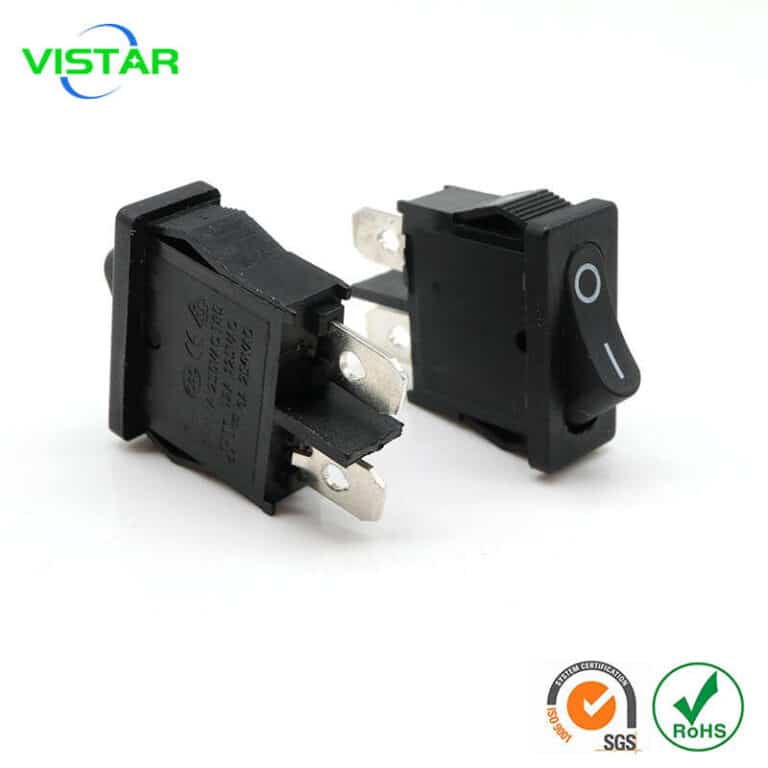

Title: Black tin rocker switch kcd1 SPST 2p solder type
Part No: KCD1-110
Specification:
Rating: 3A 250VAC, 6A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

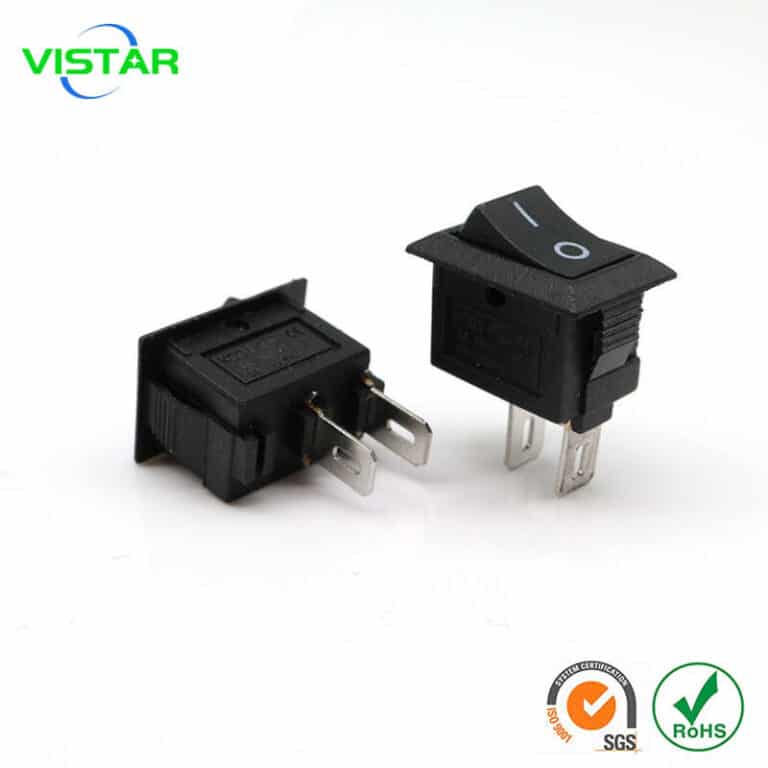

Title: 2 pin mini rocker switch on-off 15×10 mm SPST boat rocker switch
Part No: KCD11-101
Specification:
Rating: 3A 250VAC, 6A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 10,000Cycles
Temperature: -25 ~+85°C
Packaging: Bag

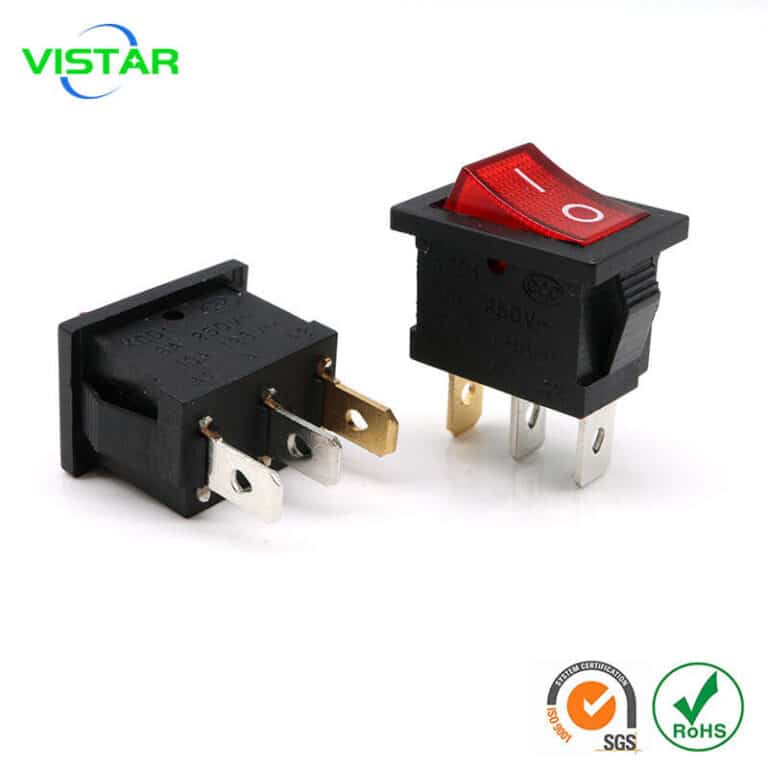

Title: 3A/6A 250VAC 3 pin rocker switch 15*10 with led light
Part No: KCD1-103N
Specification:
ating: 3A/6A 250VAC; 6A/10A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 50,000Cycles
Ambient Temperature: T 85/55
Packaging: Bag

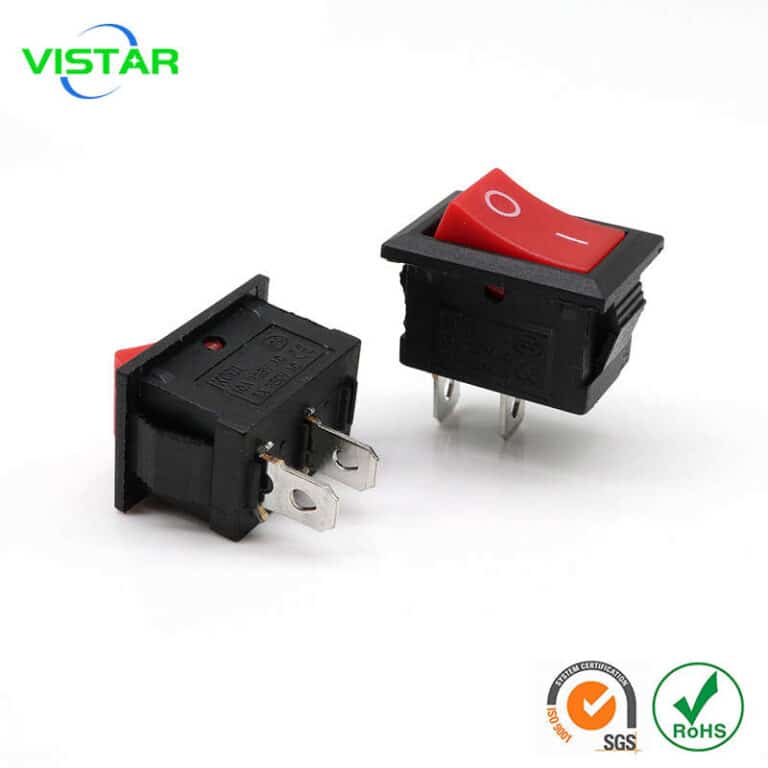

Title: 15×10 mm kcd1 rocker switch 2 pin on-off boat rocker switch
Part No: KCD1-101
Specification:
ating: 3A/6A 250VAC; 6A/10A 125VAC
Dielectric Strength: 1500vac/5s min
Insulated Resistance: 100MΩ min
Contact Resistance: 50MΩ max
Operating Life: 50,000Cycles
Ambient Temperature: T 85/55
Packaging: Bag
