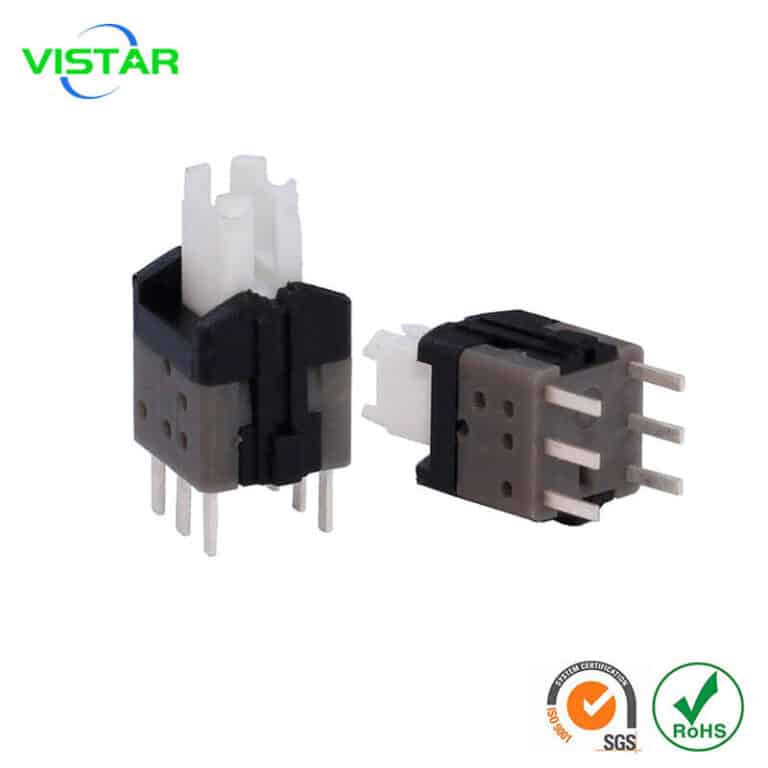

6 PIN ILLUMINATED PUSH SWITCH
Title: ILLUMINATED PUSH SWITCH 5.8×5.8 2P2T DIP 6PIN
Part No: TP-6041
Specification:
Rating: DC 12V, 0.1A
Travel: 1.9±0.1mm
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag
Menu
3 pin /6pin SMD push button switch /5.8×5.8 7×7 8×8 mm push button switch dip vertical/right angle.
A push switch, also known as a push button switch, is a type of electrical switch that is operated by pressing it down or pushing on it. It is a simple, momentary switch that is commonly used in various applications such as electronic devices, control panels, appliances, and industrial equipment.
The push switch typically consists of a button or actuator that is connected to a set of contacts inside the switch. When the button is pressed, it creates a temporary electrical connection between the contacts, allowing current to flow through the switch. When released, the switch returns to its original state, breaking the electrical connection.
Push switches can have different configurations based on their function and design. They can be normally open (NO), where the contacts are open when the button is not pressed, or normally closed (NC), where the contacts are closed when the button is not pressed. Some push switches may also have additional features like illumination, latching mechanisms, or multiple positions.
Overall, push switches are widely used for their simplicity, durability, and ease of use. They provide a convenient way to control electrical circuits and are often incorporated into various electronic devices and systems.
Title: ILLUMINATED PUSH SWITCH 5.8×5.8 2P2T DIP 6PIN
Part No: TP-6041
Specification:
Rating: DC 12V, 0.1A
Travel: 1.9±0.1mm
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag
Title: 2 pin 1P1T push switch 15×12 mm wire bonding / soldering for PlayStation
Part No: PB-11E04
Specification:
Rating: DC 30V, 0.3A
Operating mode: non-lock
Operating force: 180gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

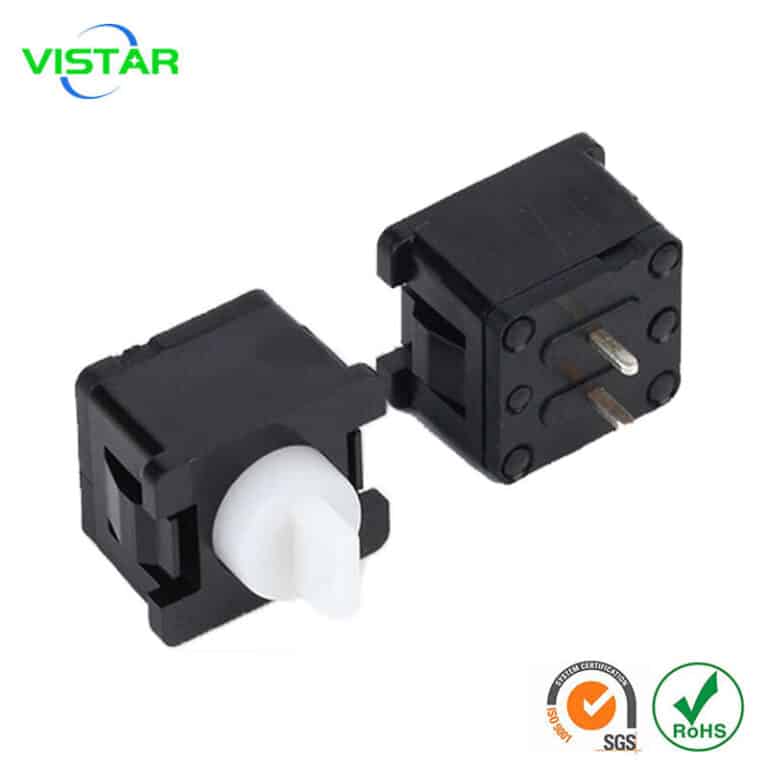

Title: 2 pin SPST push switch 15×12 mm push button switch 1p1t dip vertical
Part No: PB-11E01
Specification:
Rating: DC 30V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

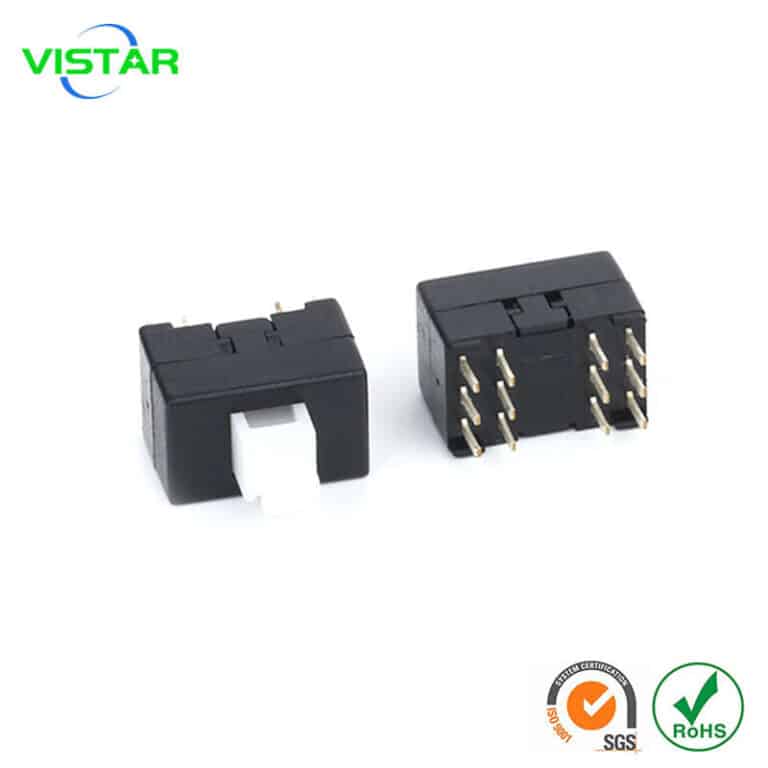

Title: 12 pin push switch 4p2t 11×7 mm dip vertical
Part No: PB-42E37
Specification:
Rating: DC 30V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag
Title: 3 pin dip push switch right angle 5.8×5.8 mm 2p2t
Part No: PB-22E69
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

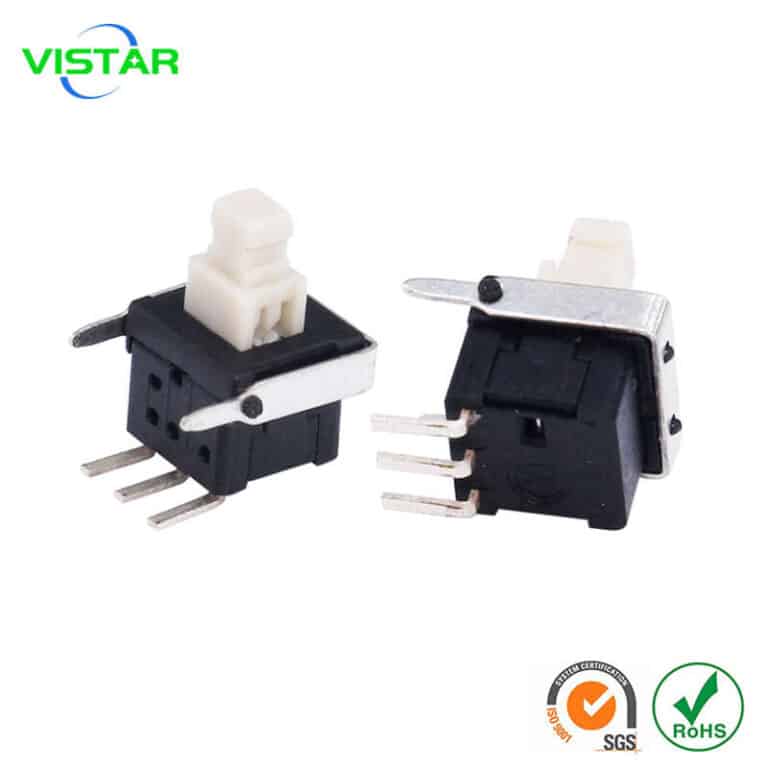

Title: 3 pin push switch unlock 5.8×5.8 mm 2p2t DIP 90°
Part No: PB-22E68
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

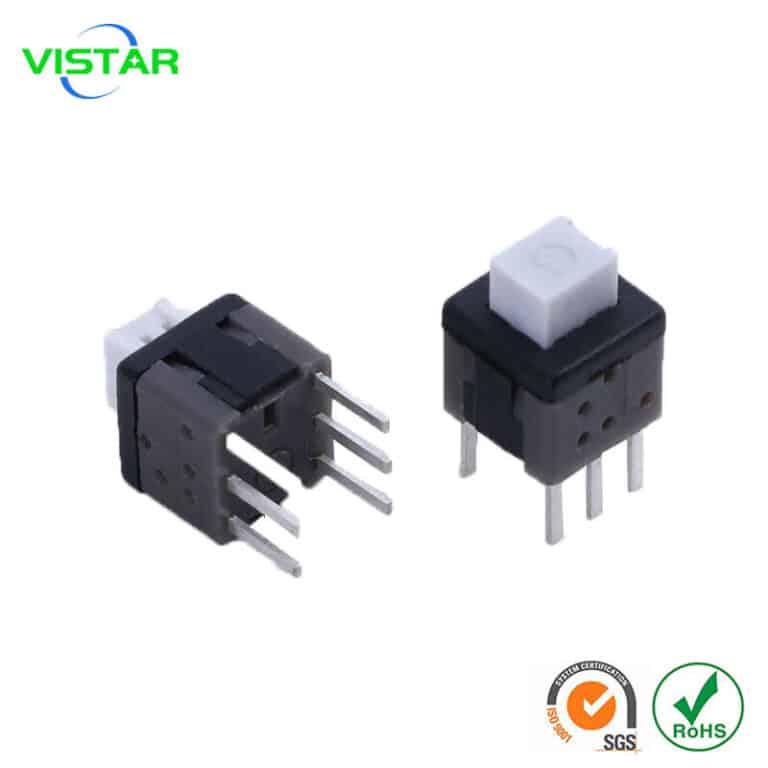

Title: 6 pin DIP push switch 2P2T 5.8*5.8
Part No: PB-22E65
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

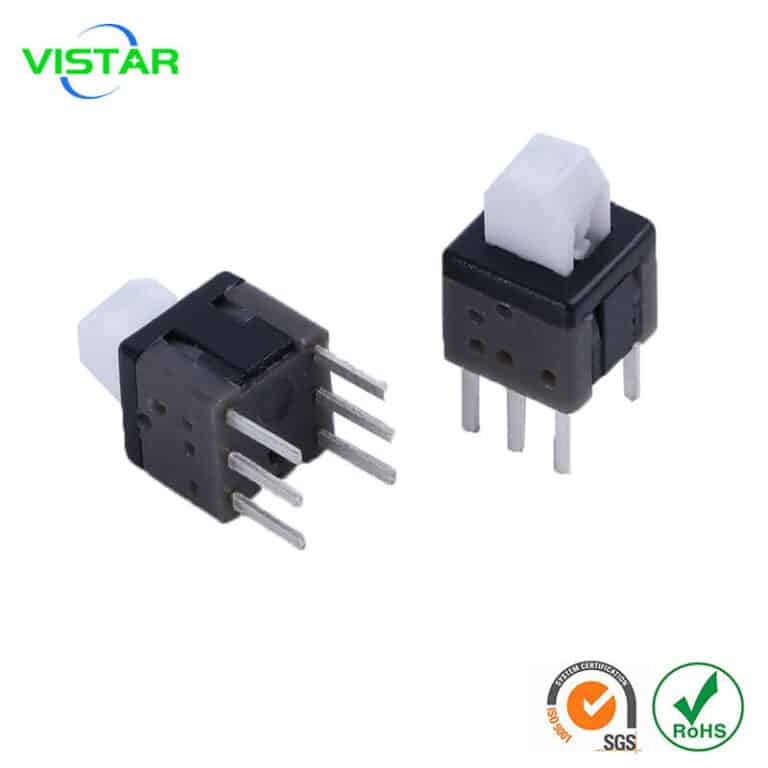

Title: 5.8*5.8mm push switch DIP 6 pin
Part No: PB-22E63
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag
Title: 6 pin self-locking push button switch 5.8X5.8 SMT vertical
Part No: PB-22E60PM-E
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

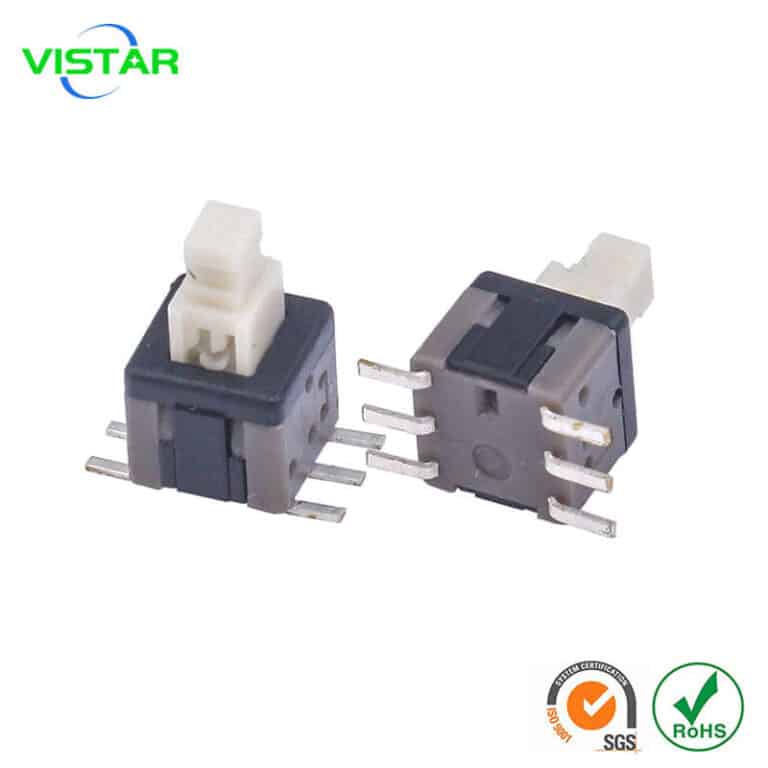

Title: 6 pin SMD push switch 2p2t 5.8X5.8 push button switch SMT 6P vertical
Part No: PB-22E60G
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock/non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

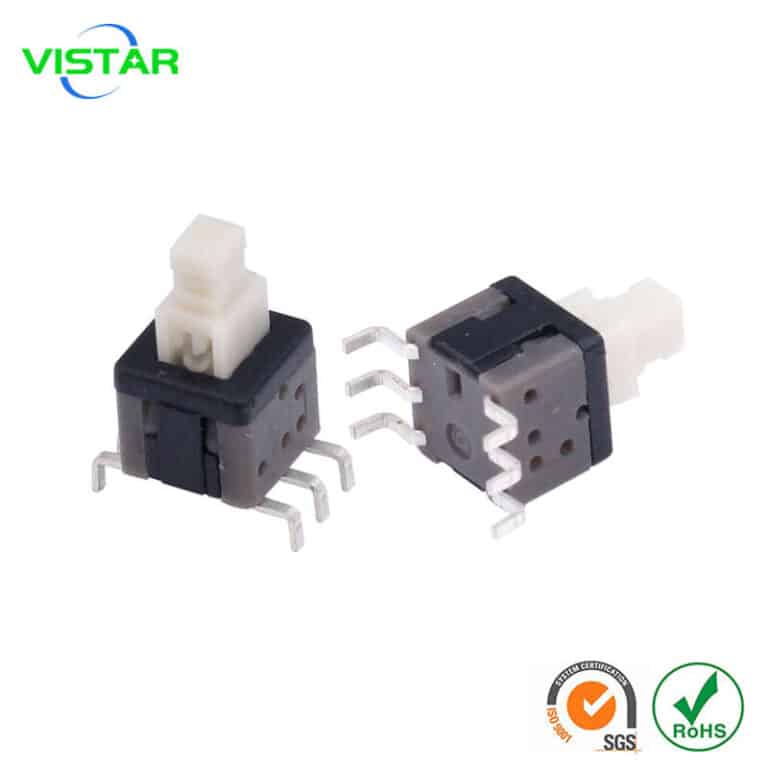

Title: 5.8mm push switch 2p2t dip 6pin pushbutton switch 5.8*5.8
Part No: PB-22E601
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock/Non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

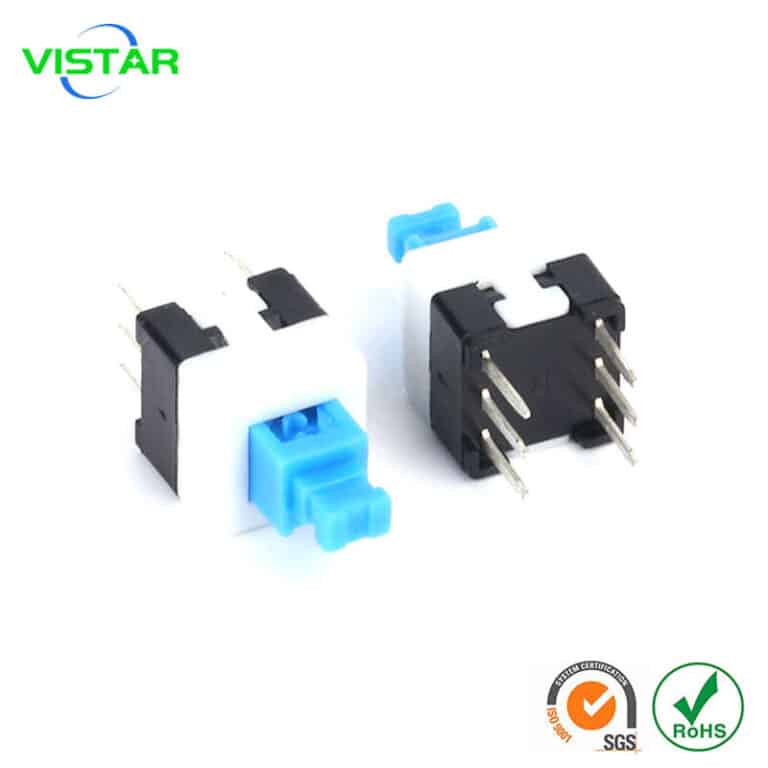

Title: 6 pin push button switch self-lock 7×7 push switch 6 pin dip vertical
Part No: PB-22E27
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock / non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

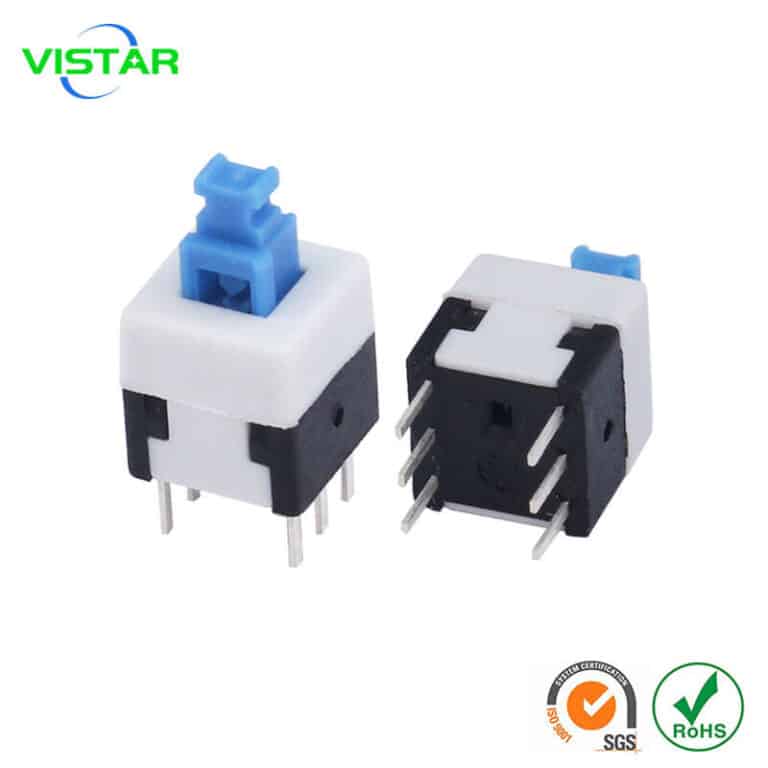

Title: 6pin self-locking push switch 8×8 dip vertical 2p2t
Part No: PB-22E08
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

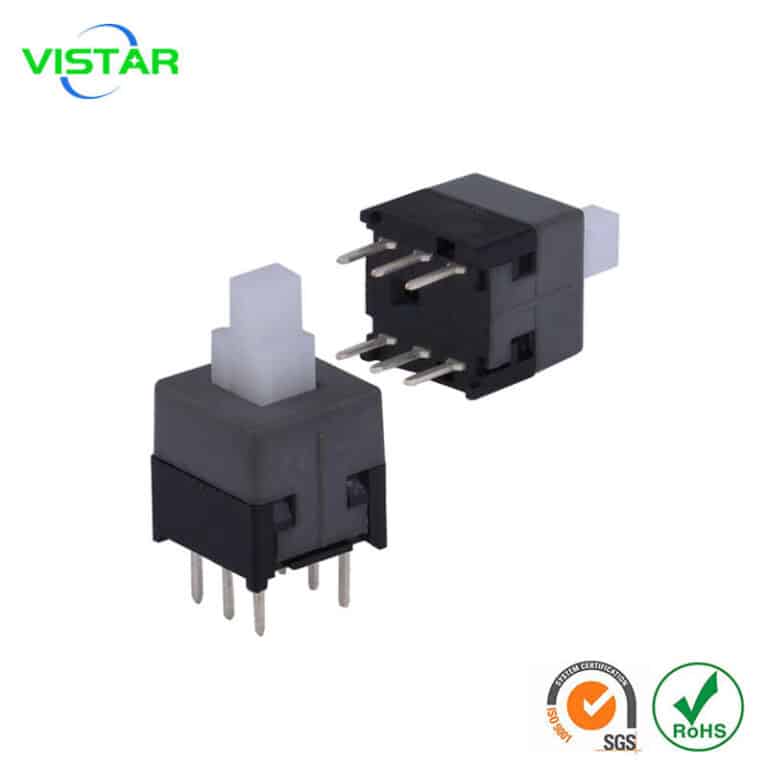

Title:8.5×8.5 push switch self-lock 6pin dip vertical 2p2t
Part No: PB-22E06
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

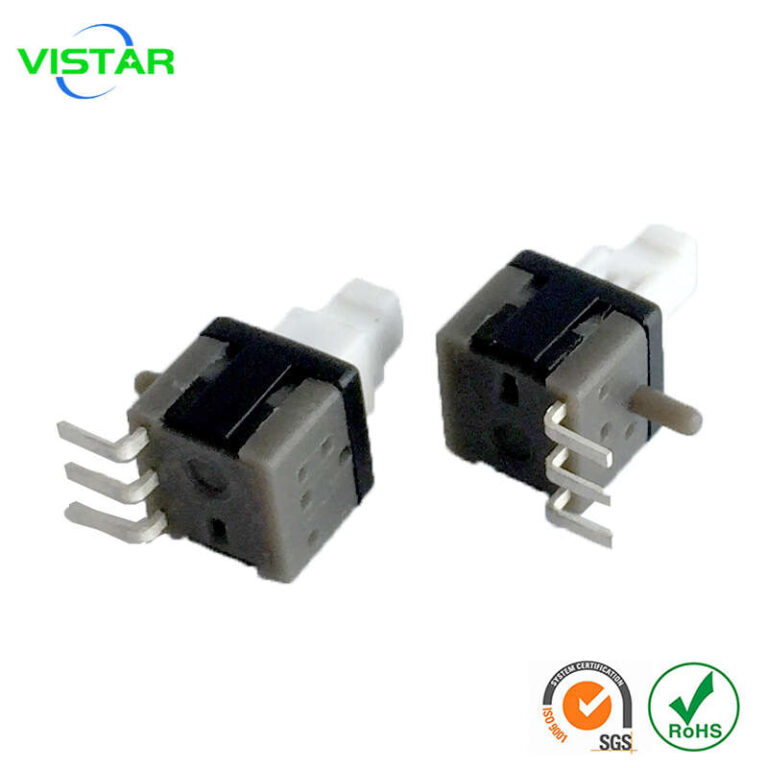

Title: 5.8×5.8 push switch 90° 3 pin 5.8*5.8 pushbutton switch no locking 3p DIP right angle
Part No: PB-12E745
Specification:
Rating: DC 12V, 0.1A
Operating mode: non-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

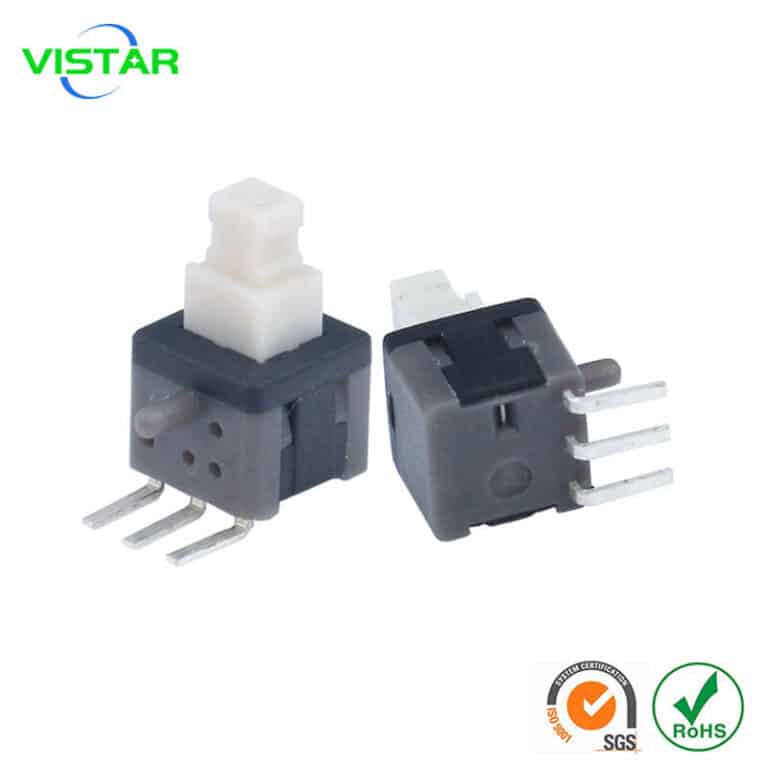

Title: 12v momentary push switch self-lock 5.8×5.8 push button switch 3 pin DIP right angle
Part No: PB-12E645
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag
Title: 12v 6 pin push switch non-lock 5.8*5.8 mm
Part No: PB-22E70
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Tray/Bag

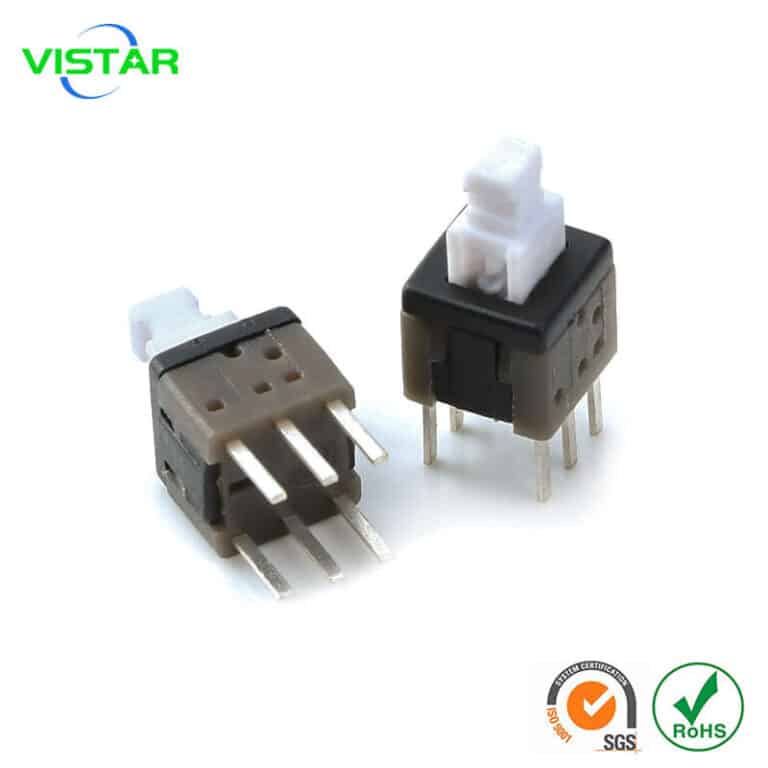

Title: 5.8 mm Push button switch 2P2T 6 pin DIP self-locking push switch 5.8×5.8
Part No: PB-22E60
Specification:
Rating: DC 12V, 0.1A
Operating mode: Self-lock
Operating force: 180gf & 250gf
Operating Life: 10,000Cycles
Packaging: Bag
