Phone Jack

2.5 3.5 6.35 mm phone jack smd /dip audio jack connectors

A phone jack, also known as a telephone jack or telephone connector, is a hardware component used to connect a telephone or other telecommunications device to a telephone line or network. It is a standard interface found on most landline telephones and can also be present on other devices such as fax machines and modems.

A phone jack typically consists of a small, rectangular plastic or metal housing with several metal contacts inside. The number and configuration of these contacts can vary depending on the type of jack and the specific application.

Phone jacks come in different sizes and types. The most common types include:

RJ11: This is the standard jack used for connecting telephone devices. It has six positions and two to four contacts, depending on whether it is used for a single or multiple line connection.

RJ45: This is a larger, rectangular jack typically used for Ethernet networking. It has eight positions and eight contacts and is commonly found on VoIP telephones or devices that incorporate both telephone and data connections.

When connecting a phone or other device to a phone jack, a corresponding plug or connector is inserted into the jack, establishing a connection with the telephone line. The plug is typically a small plastic device with metal contacts that align with the contacts inside the jack.

Phone jacks are essential for establishing a reliable and secure connection between telephone devices and the telephone network. They provide a standardized interface for connecting and disconnecting telecommunication equipment and are crucial for voice communication in both residential and commercial settings.

Product Categories

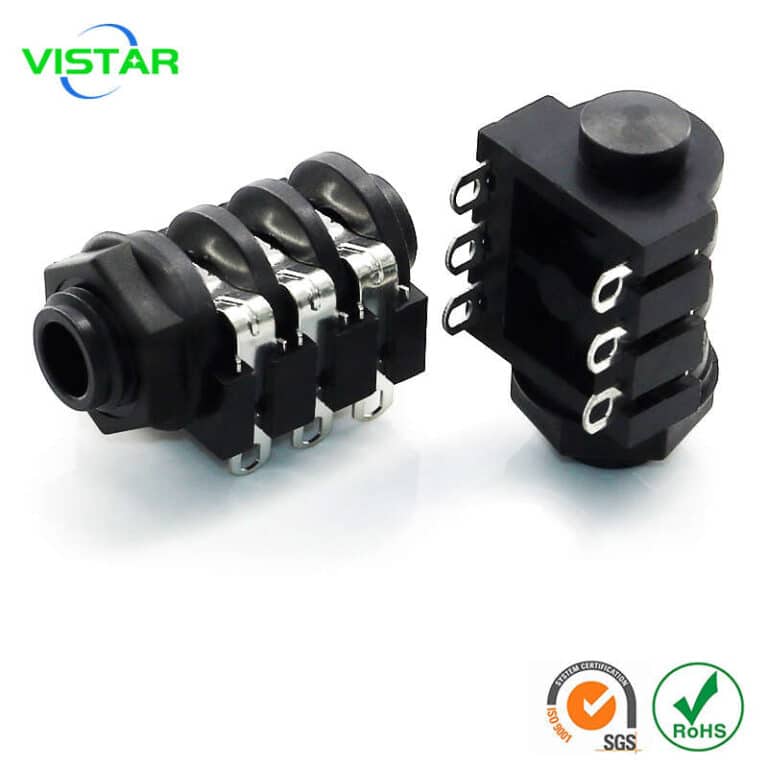

6.35 mm microphone jack 6.35mm插口

6.35 mm microphone jack

Title: 6.35 mm microphone jack solder connectors 1/4 in chassis mount soundposts

Part No: PJ-6637

Specification:

Rating: DC 30V 1 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 5N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

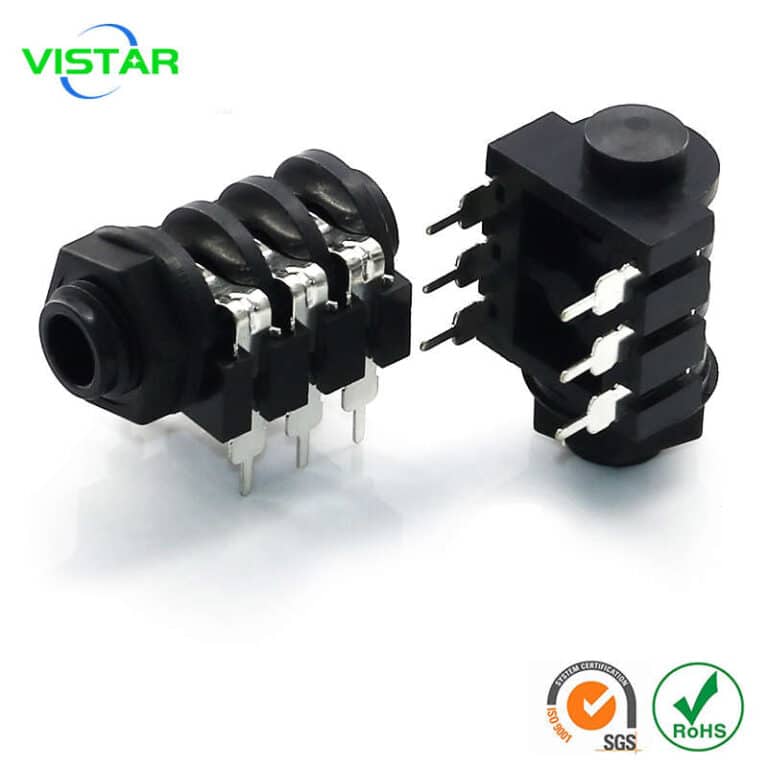

1/4 inch audio jack 6 pin TH

1/4 inch audio jack 6pin jack phone 6.35

Title: 6.35 mm headphone jack connector dip right-angle 1/4 inch audio jack 6 pin TH

Part No: PJ-6635

Specification:

Rating: DC 30V 1 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 5N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

6.35 mm audio jack solder 6.35耳机插座CK-6.35-627 6.35MM音响插座

6.35 mm audio jack solder type phone jack

Title: 6.35 mm audio jack solder type 3 pin phone jack wiring connector female

Part No: PJ-6627

Specification:

Rating: DC 30V 1 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 5N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

6.35 mm phone jack connector

6.35 mm phone jack DIP 7 pin

Title: 6.35 mm phone jack right angle DIP 7pin PCB panel mount audio jack connector

Part No: PJ-6102S

Specification:

Rating: DC 30V 1 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 5N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

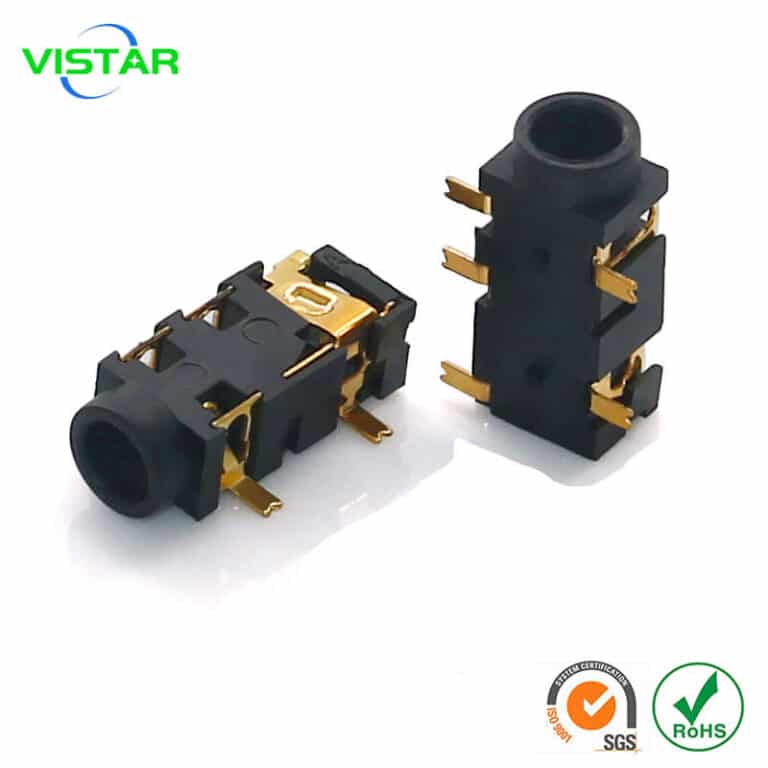

Audio jack 3.5mm耳机插座 PJ-327A 五脚贴片镀金

5 pin SMD audio jack 3.5mm

Title: 5 pin audio jack 3.5mm phone jack connectors SMT right angle

Part No: PJ-327A

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

3.5 mm phone jack DIP

3.5 mm phone jack 4 pin DIP

Title: 3.5 mm phone jack DIP 4pin right angle jack phone panle mount 1/8 inch audio jack

Part No: PJ-327

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

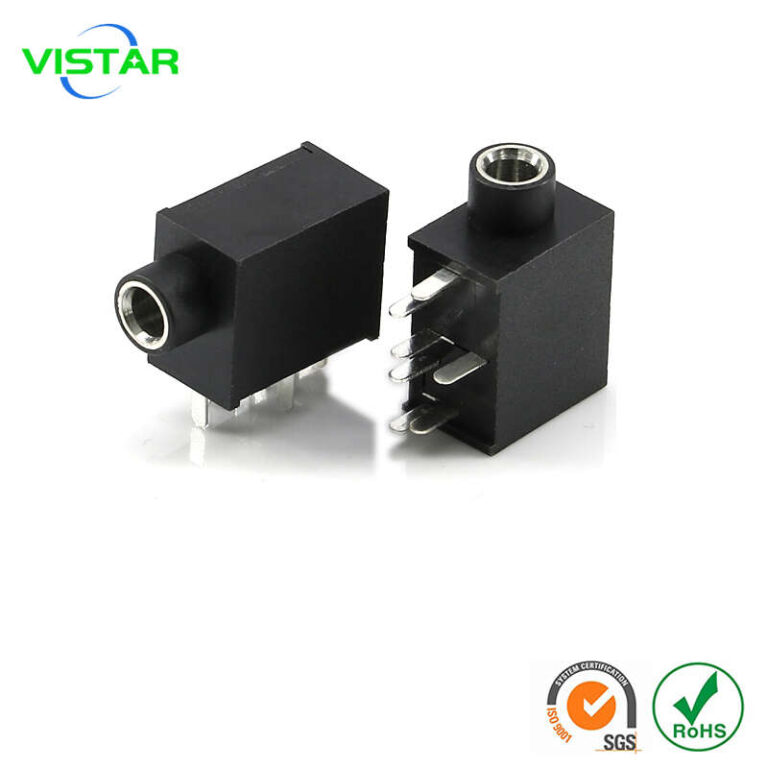

3.5 mm headphone jack connector

3.5 mm Headphone Jack Connector

Title: 3.5 mm headphone jack connector 7 pin dip right angle

Part No: PJ-325C

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

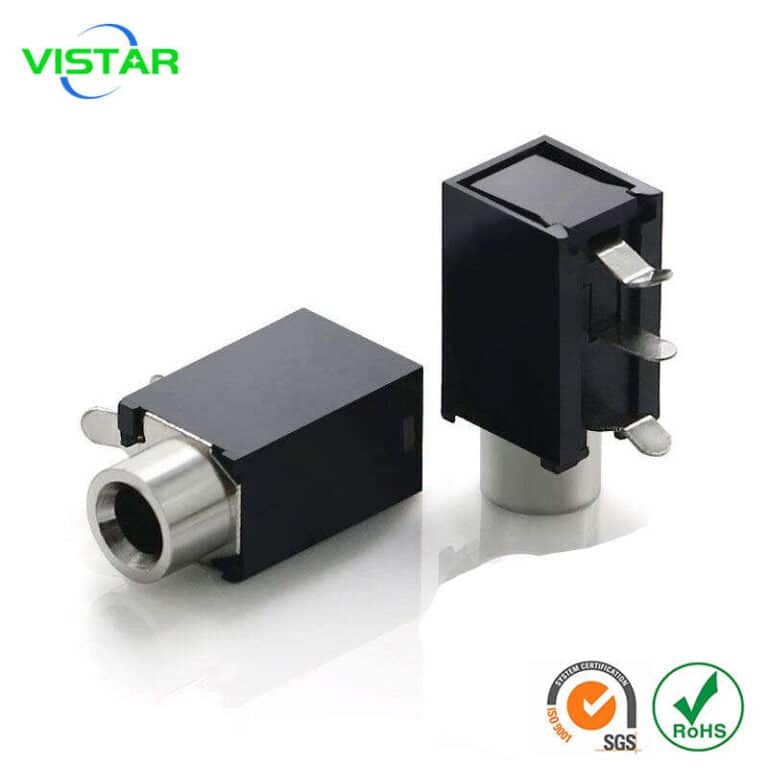

3.5mm headphone jack 3 pin mono jack 3.5 mm dip right angle 3.5音频插座光孔金属头 3脚直插耳机插座

3.5mm headphone jack

Title: 3.5mm headphone jack 3 pin mono jack 3.5 mm dip right angle

Part No: PJ-316

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

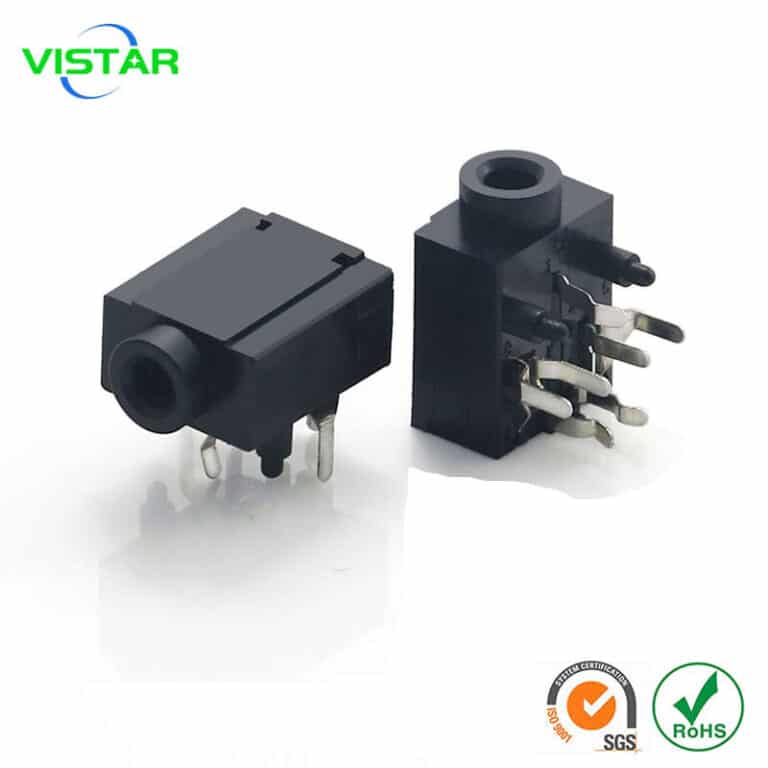

3.5mm audio jack DIP 6 pin phone jack right angle

3.5mm audio jack DIP

Title: 3.5mm audio jack DIP 6 pin phone jack right angle

Part No: PJ-315

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

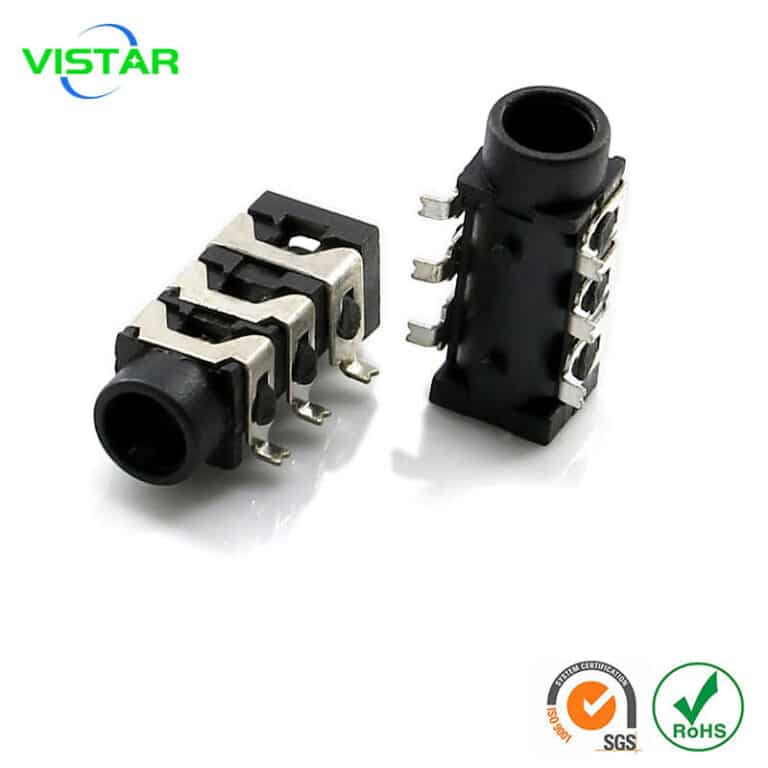

3.5 mm audio jack female stereo smd jack 3.5mm耳机音频插座PJ313D黑色3节6脚贴片耳机插座3.5母座

3.5 mm audio jack female SMT 6pin

Title: Best audio jack 3.5 stereo 6 pin phone jack 3.5 mm audio jack female SMT right angle

Part No: PJ-313D

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

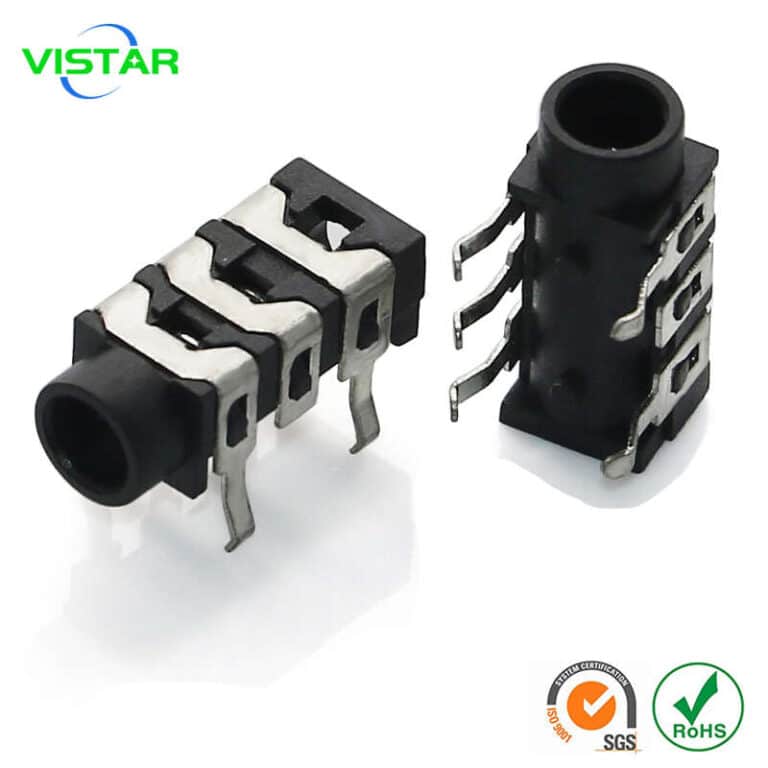

3.5 mm audio jack

3.5 mm audio jack dip

Title: 3.5 mm audio jack DIP 5 pin right angle phono jack 3.5mm

Part No: PJ-313

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

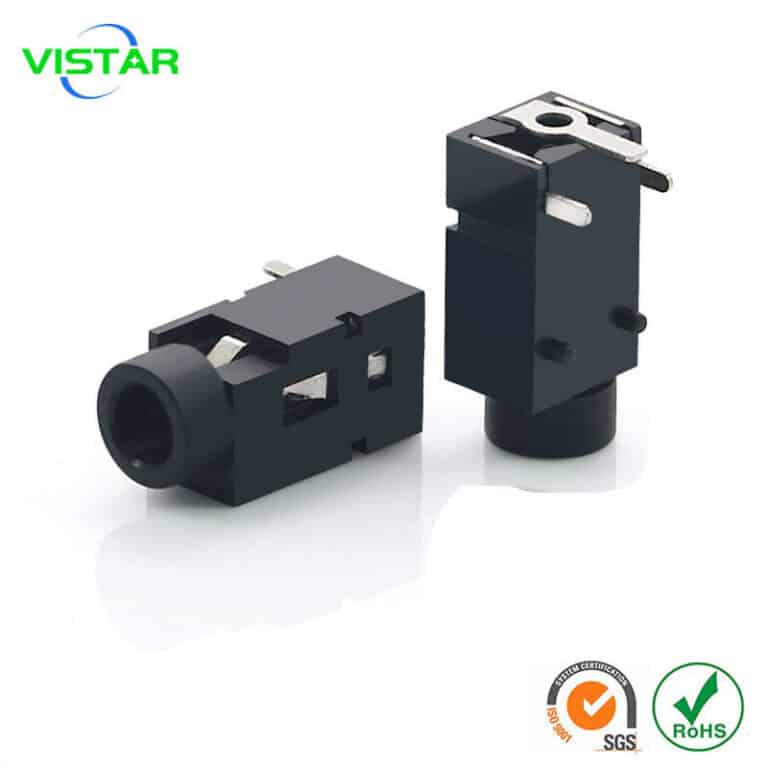

3.5 mm headphone jack DIP 3 pin right angle

3.5 mm headphone jack dip 3 pin

Title: 3.5 mm headphone jack DIP 3 pin audio jack right angle

Part No: PJ-311

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

3.5mm phone jack

3.5mm phone jack dip

Title: 3.5mm phone jack DIP 3pin 90° 3.5 mm audio jack connector 3p right angle

Part No: PJ-308

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

Audio jack 2.5 mm 耳机插座 6脚贴片SMT

2.5 mm Audio Jack SMD 6Pin

Title: 2.5 mm Audio jack SMD phone jack connector smt 6 pin phone jacks right angle

Part No: PJ-242

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

2.5mm audio jack connector 6 pin SMT right angle

2.5mm audio jack connector smt 6 pin

Title: 2.5mm audio jack connector 6 pin SMT microphone phone jack right angle

Part No: PJ-226

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

2.5mm jack audio connector SMT 6P

2.5mm jack audio connector SMT 6P

Title: 2.5mm jack audio connector SMT 6 pin phone jack SMD horizontal

Part No: PJ-224

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

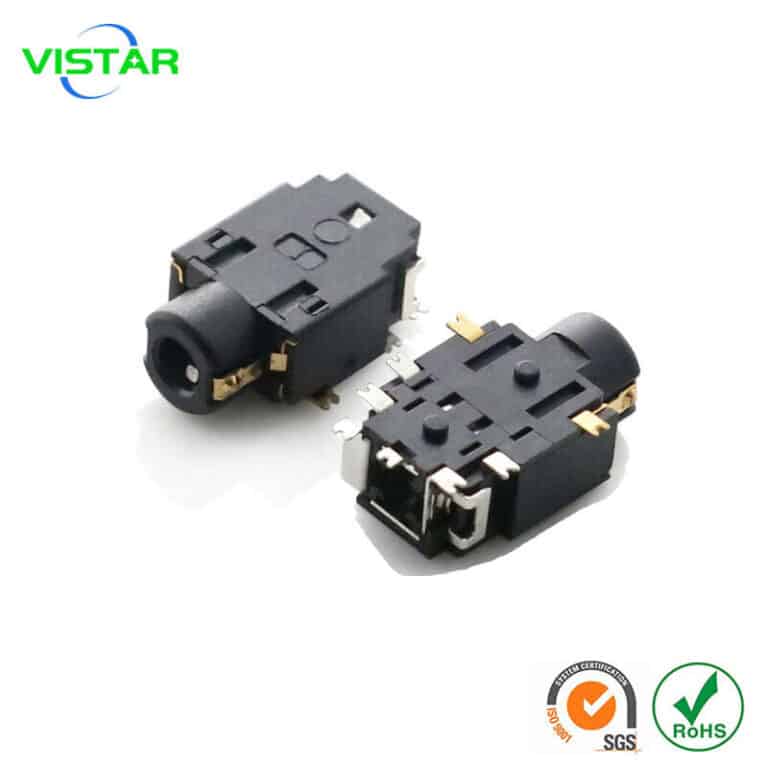

2.5mm stereo jack audio 8 pin phone connector SMD horizontal

2.5mm stereo jack audio

Title: 2.5mm stereo jack audio 8 pin phone connector SMD horizontal

Part No: PJ-221

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag

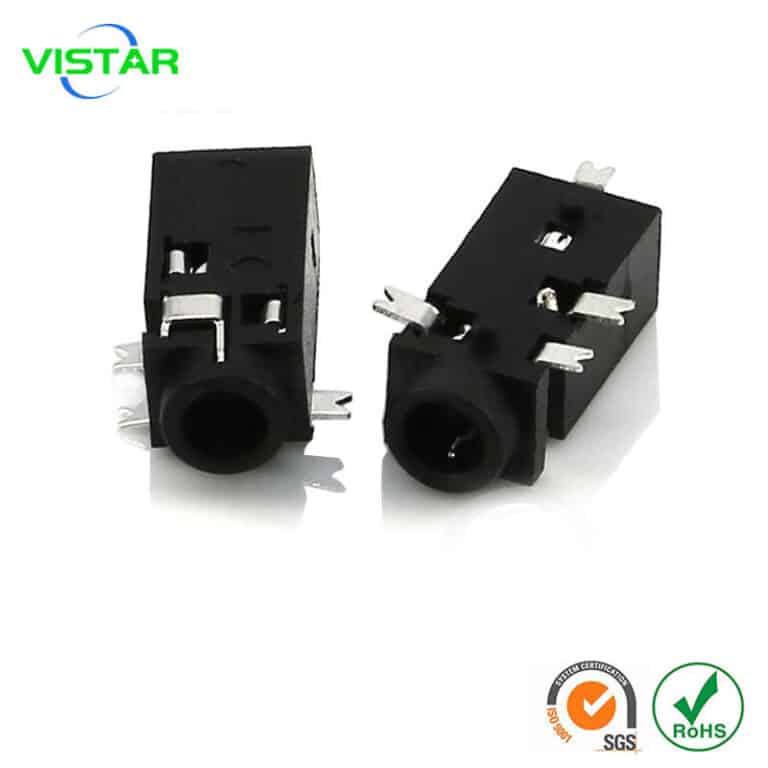

4 pin phone jack SMD right angle

4 Pin Phone Jack 2.5 SMD Right Angle

Title: 2.5mm audio jacks 4 pin phone jack SMD right angle

Part No: PJ-218

Specification:

Rating: DC 30V 0.5 A
Contact Resistance: ≤ 0.03 Ω
Insulation Resistance: ≥ 100M Ω
Withstand Voltage: AC 500V(50Hz)/ min
Actuating Force: 3N ~ 30N
Operating Life: 5,000 Cycles
Packaging: Tray/Bag
