DisplayPort Connector 20pin male DP plug clamp pcb mini displayport pcb connector.
A DisplayPort connector is a digital audio/video interface commonly used to connect a computer or other source device to a monitor, projector, or TV. It is capable of carrying high-definition video and audio signals, and supports resolutions up to 8K.
The connector itself is a small, rectangular shape with a single cable attached to it. It is often labeled with a symbol that looks like a DP inside a square or rectangle. The connector typically has 20 pins, arranged in two rows of ten.
DisplayPort connectors are commonly found on modern computers, laptops, and graphics cards, as well as on many high-end monitors and TVs. They are designed to provide a high-quality, digital connection that delivers excellent image and sound quality.

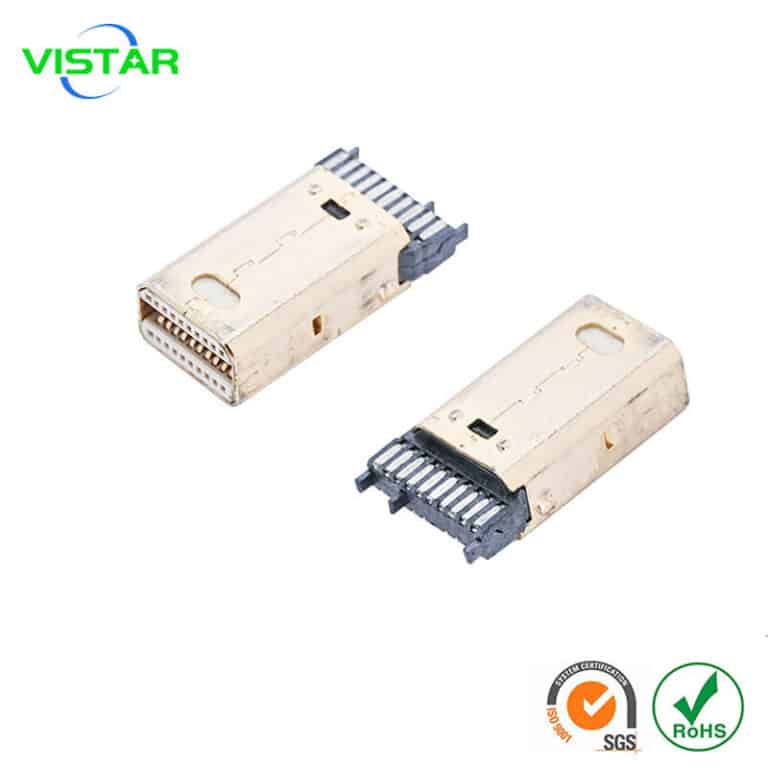

Title: Mini DP plug 20 pin mini DisplayPort solder connector male
Part No: DP-MN-M02
Specification:
Rating: 0.5A
Insertion force:35N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray

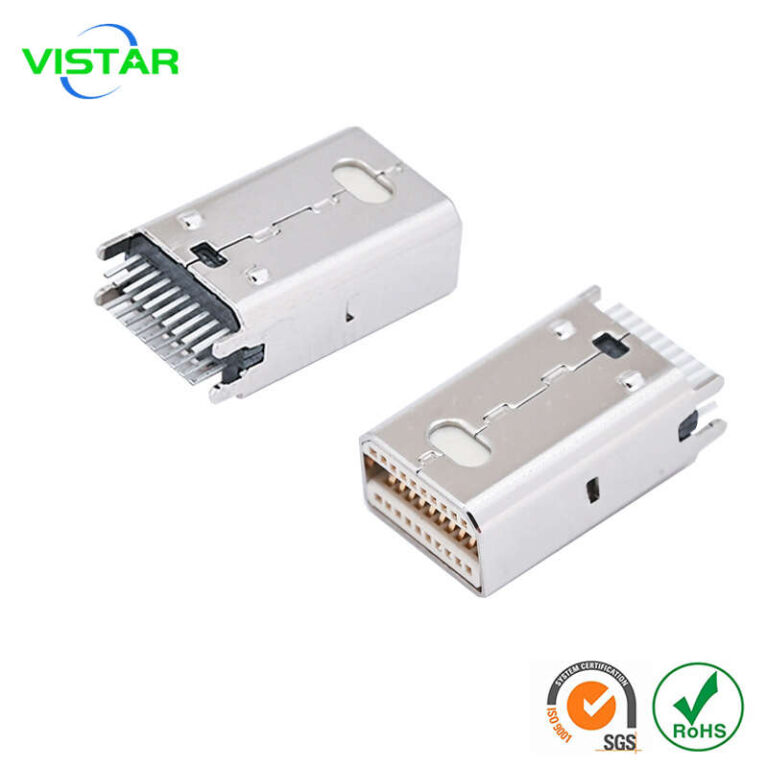

Title: Mini DP connector male 20pin clamp plate 1.6 mm mini displayport plug splint pcb type
Part No: DP-MN-M01
Specification:
Rating: 0.5A
Insertion force:35N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray
Title: 20 pin DisplayPort connector male clamp plate 1.6 mm
Part No: DP-M-03
Specification:
Rating: 0.5A
Insertion force:35N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray
Title: 20 pin Mini DisplayPort pcb connector clamp mini DP receptacle
Part No: DP-MN-F01
Specification:
Rating: 0.5A
Insertion force:45N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray

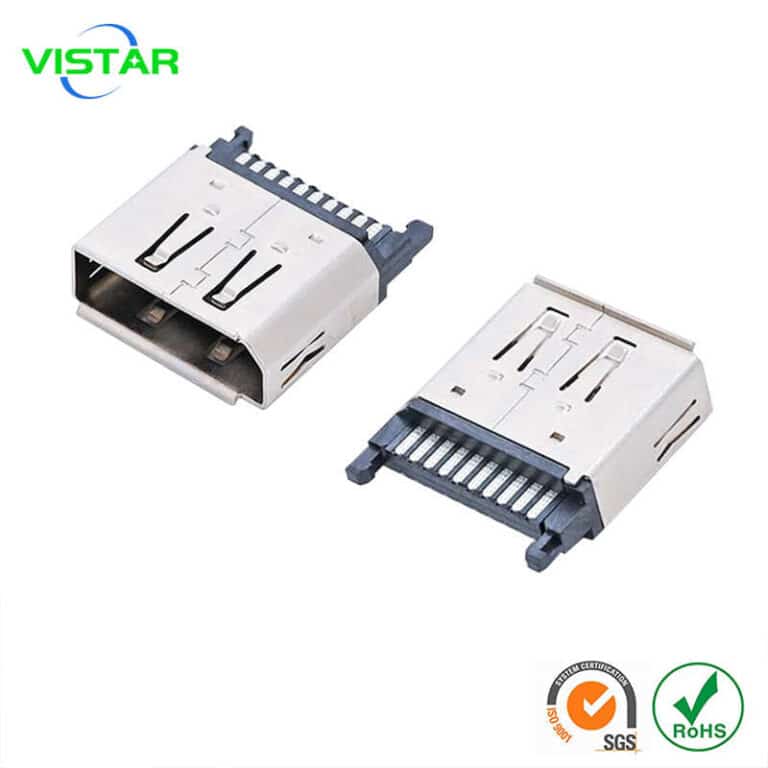

Title: DisplayPort solder connector female 20 pin DP receptacle
Part No: DP-F-04
Specification:
Rating: 0.5A
Insertion force:45N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray

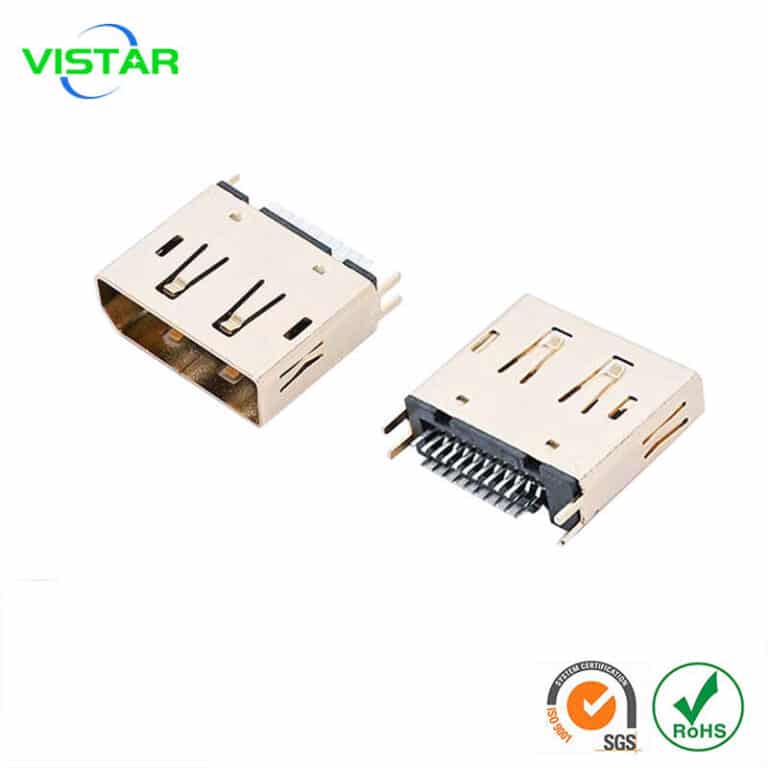

Title: DisplayPort connector pcb 20 pin DP connector clamp plate 1.6mm
Part No: DP-F-03
Specification:
Rating: 0.5A
Insertion force:45N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray

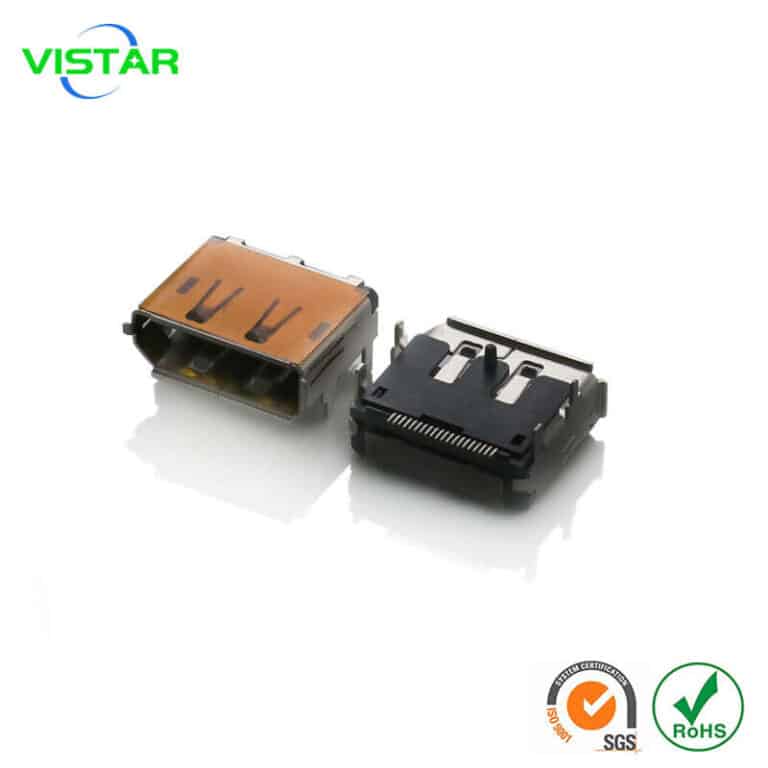

Title: DP connector female SMT 20 pin on board displayport receptacle SMD right angle
Part No: DP-F-02
Specification:
Rating: 0.5A
Insertion force:45N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray

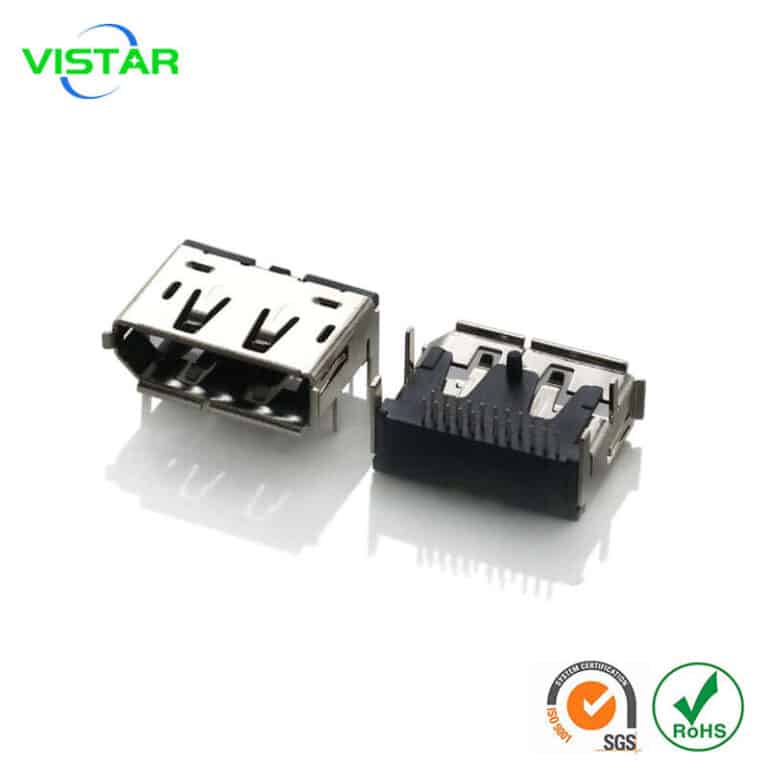

Title: DisplayPort connector 20 pin DP female connector DIP right angle
Part No: DP-F-01
Specification:
Rating: 0.5A
Insertion force:45N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray

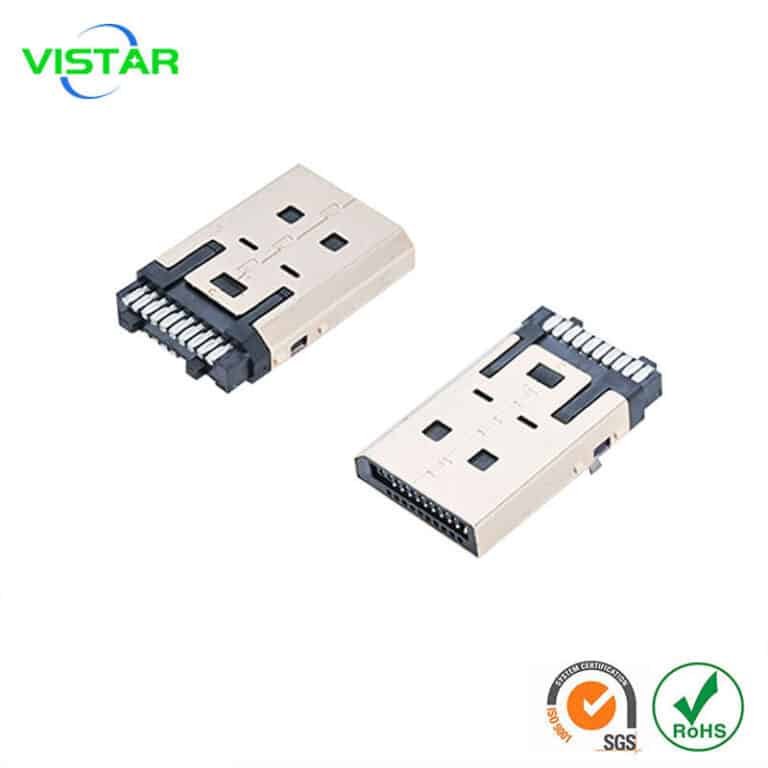

Title: DP solder connector male 20 pin DisplayPort plug
Part No: DP-M-02
Specification:
Rating: 0.5A
Insertion force:35N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray

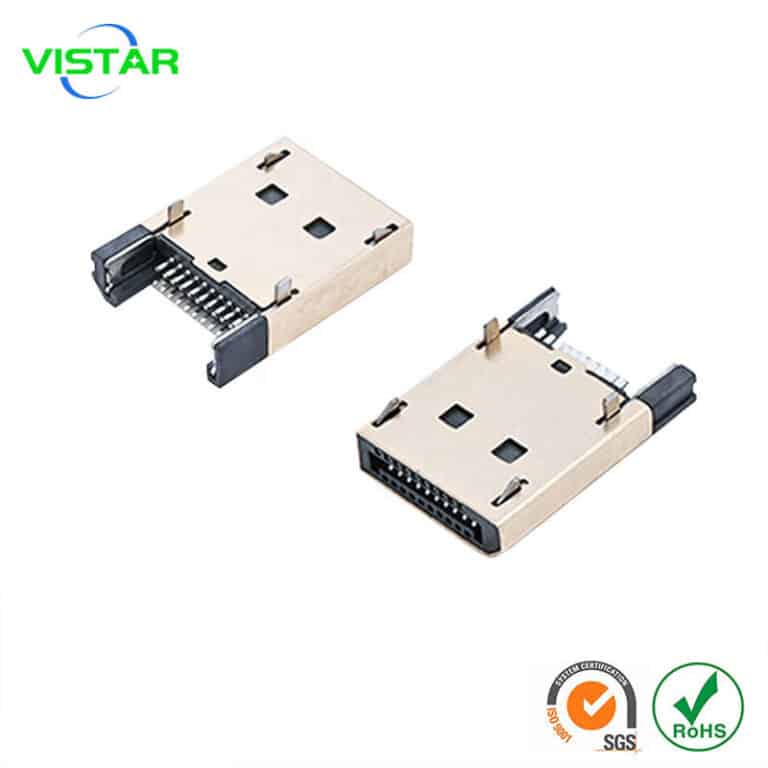

Title: DP connector male 20 pin DisplayPort plug pcb mount 1.6MM
Part No: DP-M-01
Specification:
Rating: 0.5A
Insertion force:35N Max
withdrawal force:8N Min
Operating Life: 5,000Cycles
Packaging: Reel/Tray
