Title: USB 3.0 female connector 9 pin middle mount USB connectors smt sinking PCB
Part No: USB-AF-301
Specification:
Rating: 1,5A
Insertion force: 35N MAX
Withdrawal force: 10N MIN
Operating Life: 1,500 Cycles
Packaging: Reel/Tray
USB 3.0 female connector 9 pin smt sinking PCB
Tags: USB 3.0 connector, USB 3.0 female connector, USB 3.0 type-a female connector, USB 3.0 AF connector, USB 3.0 receptacle
Features & Advantage:
◆ Suitable for high-density mounting.
◆ Easy and quick usage for better user experience.
◆ Smaller part size saves space.
◆ Contacts are completely sealed, enhancing reliability
◆ All parts will be inspected before the shipment.
◆ Free sample available for quality test.
◆ Can be customized for unique material or performance requirement.
Application:
◆ For operating various mobile devices, electronic accessories etc.
◆ For operating various devices that require high density mounting such as mobile phones, communication devices compact electronic devices.

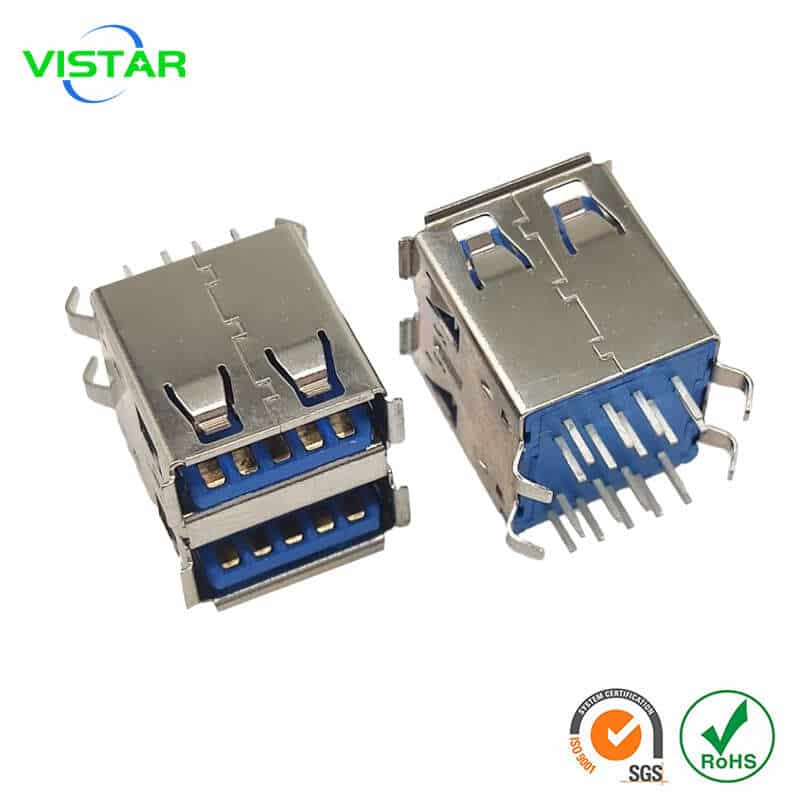

Title: USB 3 motherboard connector double ports 18 pin dip vertical
Part No: USB-AF-322
Specification:
Rating: 1.8A
Insertion force: 35N MAX
Withdrawal force: 10N MIN
Operating Life: 1,500 Cycles
Packaging: Reel/Tray

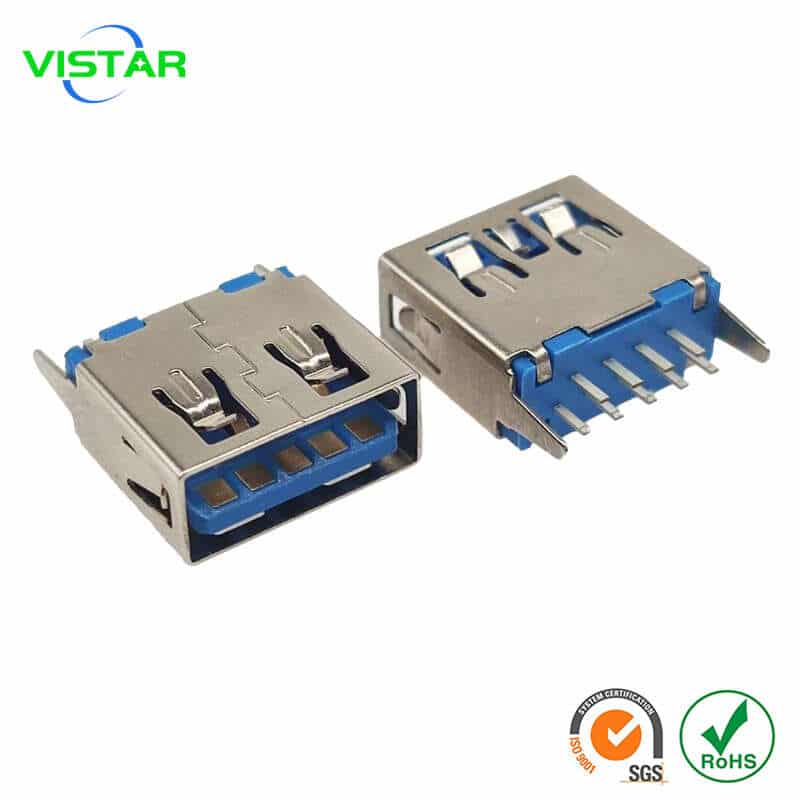

Title: USB 3.0 connector dip vertical panel mount USB receptacle 9 pin L=11.5
Part No: USB-AF-302
Specification:
Rating: 1.5A
Insertion force: 35N MAX
Withdrawal force: 10N MIN
Operating Life: 1,500 Cycles
Packaging: Reel/Tray
Title: 9 pin USB3.0 female connector flank DIP 90 degree pcb mount USB 3.0 receptalce right angle
Part No: USB-AF-306
Specification:
Rating: 1.5A
Insertion force: 35N MAX
Withdrawal force: 10N MIN
Operating Life: 1,500 Cycles
Packaging: Reel/Tray

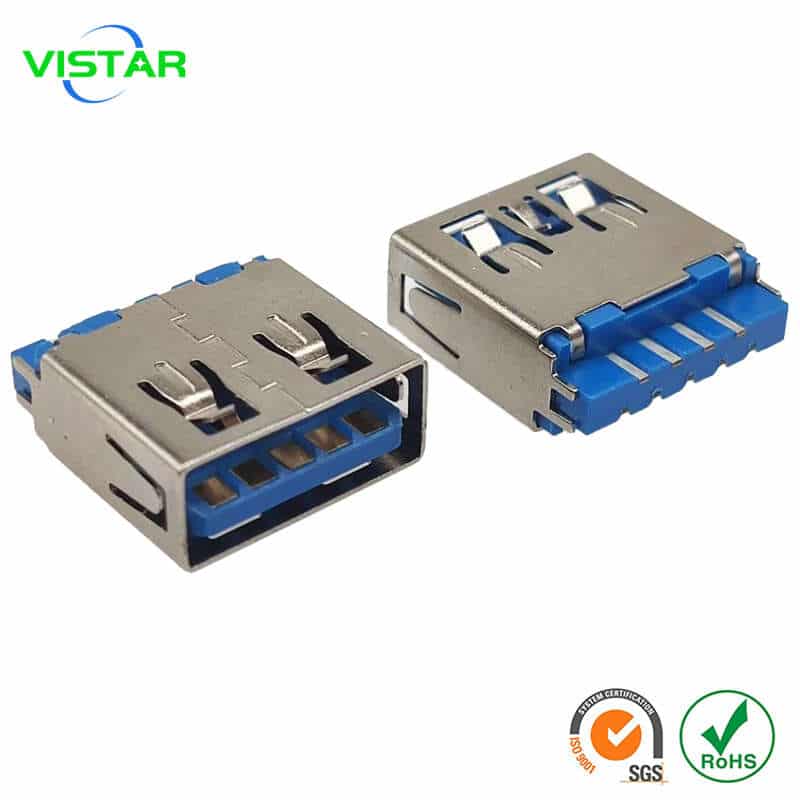

Title: Wiring type A USB 3.0 solder connector female 9 pin L=11.5
Part No: USB-AF-304
Specification:
Rating: 1.5A
Insertion force: 35N MAX
Withdrawal force: 10N MIN
Operating Life: 1,500 Cycles
Packaging: Reel/Tray
